P23
GomanLift

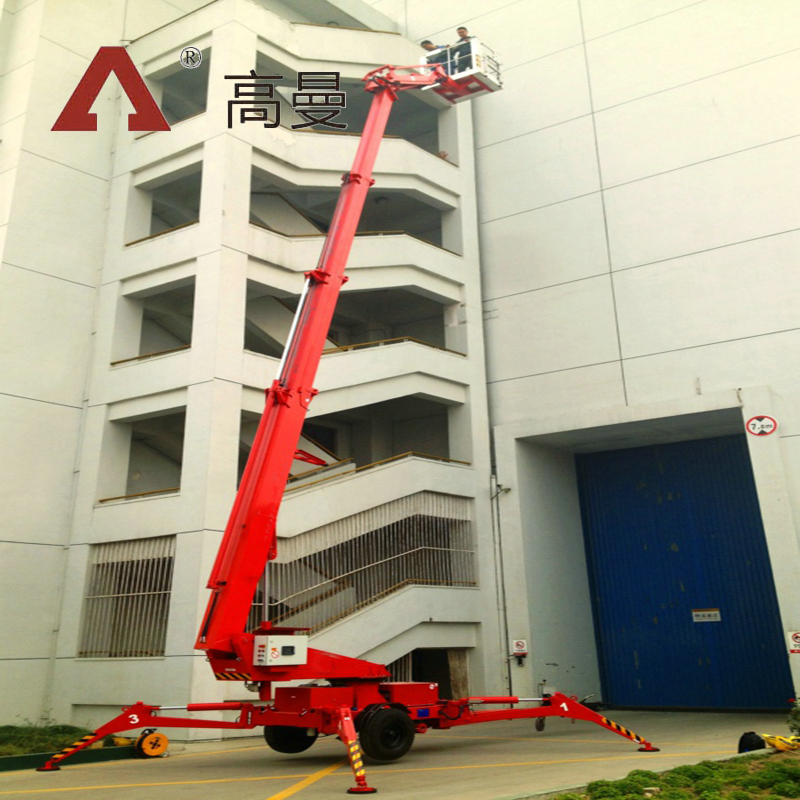

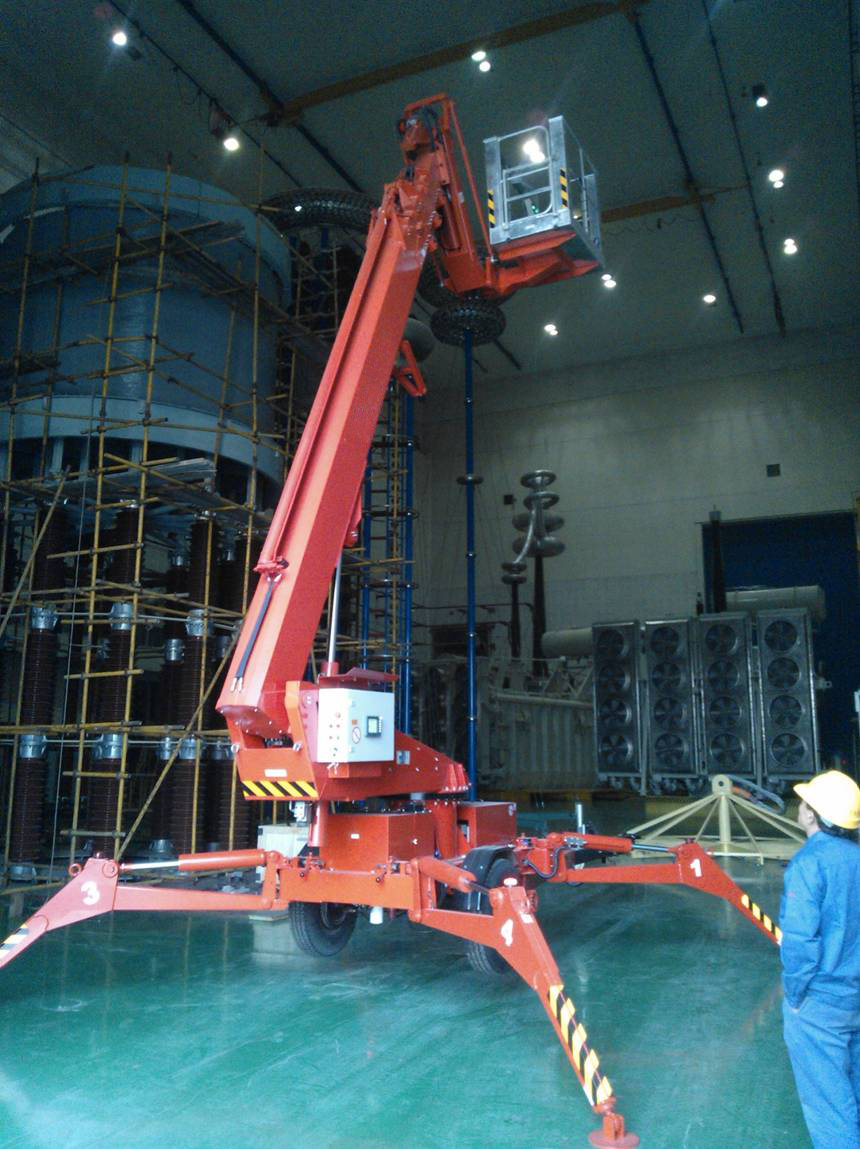

The 23m Trailer Mounted Work Platform from GomanLift (model P23) is engineered for efficient aerial operations across multiple job sites, eliminating the need for a separate flatbed trailer for transportation. Designed to balance maneuverability, safety, and versatility, this equipment suits tasks requiring frequent relocation between worksites while maintaining performance comparable to Goman’s spider lifts. It supports diverse power needs with options for diesel engine, battery, or AC power, adapting to indoor, outdoor, and varying energy supply conditions.
Parameter | Details |
Working Height | 23.0m (75ft 5in) |
Horizontal Outreach (at 200kg load) | 10.3m (33ft 9in) |
Stowed Dimensions (L×W×H) | 7.98×1.7×2.4m (26ft 2in × 5ft 7in × 7ft 10in) |
Basket Dimensions (L×W×H) | 1.2×0.8×1.1m (3ft 11in × 2ft 7in × 3ft 7in) |
Max Travel Speed | 80km/h |
Max Working Slope | 20% |
Approximate Total Weight | 3500kg (7716 lbs) |
The 23m Trailer Mounted Work Platform integrates practical design elements and safety systems to enhance operational efficiency:
Space-Saving Structure: Its compact build allows passage through narrow corridors and confined work areas, ideal for urban construction, warehouse maintenance, or indoor facility upkeep.
On-Board Power Convenience: Equipped with an AC 16A power outlet in the basket, it enables direct power supply for tools at height, reducing the need for extended cables and streamlining workflow.
Durable Control System: A high-performance HMI & PLC controller, housed in a stainless steel box, ensures stable logic control and resistance to harsh working environments, minimizing downtime.
Flexible Operation Modes: Dual control options—cable control and remote control—offer flexibility in maneuvering, with remote operation enhancing safety in hazardous or hard-to-reach areas.
Stable Working Basket: The self-leveling basket maintains horizontal stability during elevation. It can be optionally replaced with a hydraulic winch or other hydraulic tools, expanding application scope for tasks like lifting heavy components.
Emergency Safety Measures: An emergency lowering function responds swiftly to unexpected situations, prioritizing operator safety.
Efficient Stabilization: Automatic outrigger leveling and 360° non-continuous turret rotation enable quick setup, reducing preparation time on-site.
Hydraulic Safety Interlock: A built-in system prevents unsafe movements by interlocking the boom and outriggers, avoiding accidents during operation.
Robust Construction: High-tensile steel forms the core structure, with an optional hot-dip galvanized boom for superior corrosion resistance—ideal for outdoor or humid environments.
Regulatory Compliance: Meets CE EN280 standards, aligning with European requirements for mobile elevating work platforms, ensuring compatibility with global job site regulations.
Optional Maneuverability Upgrade: A friction wheel walking device can be added to improve movement flexibility on uneven or soft ground.
