T52
GomanLift

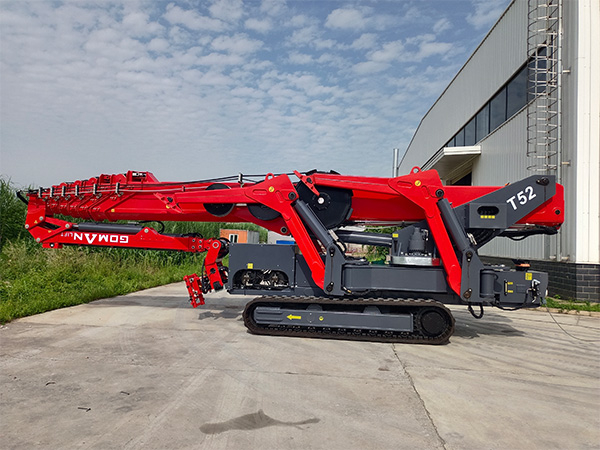

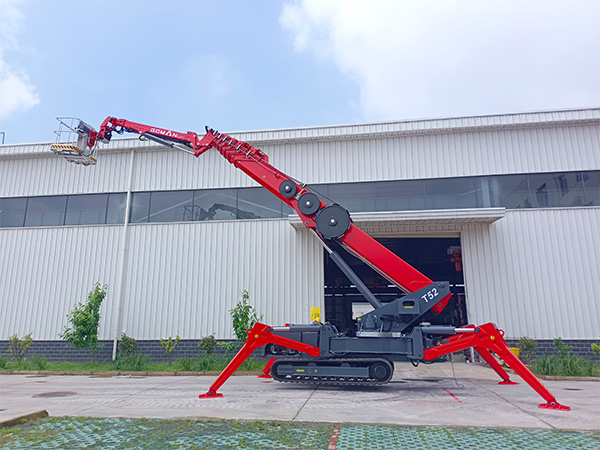

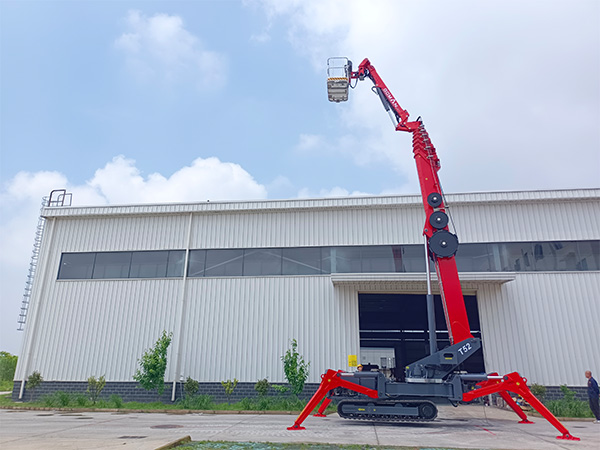

The Goman 52m Telescopic Boom Spider Lift is engineered for a wide variety of high-altitude tasks, offering exceptional vertical reach for both indoor and outdoor applications. Designed with a tracked base, this lift can easily navigate through confined spaces, making it ideal for projects such as building facade repairs, streetlight maintenance, and signage installations. With high-quality components and a focus on safety and stability, the Goman 52m lift is a robust solution for demanding work environments.
| Parameter | Value |
|---|---|
| Model | Goman 52m Telescopic Boom |
| Working Height | 52 meters |
| Outreach | 22 meters |
| Load Capacity | 300 kg |
| Power Supply | Electric, Hybrid, Diesel |
| Platform Dimensions | Customizable |
| Stabilization | Automatic Outriggers |
| Tracked Base | Yes |
| Basket Rotation | 360° |
| Max Gradeability | 30% |
| Travel Speed | 0-3.0 km/h |
| Control System | PLC with HMI |
| Dimensions (LxWxH) | 7.5m x 2.5m x 3.2m |

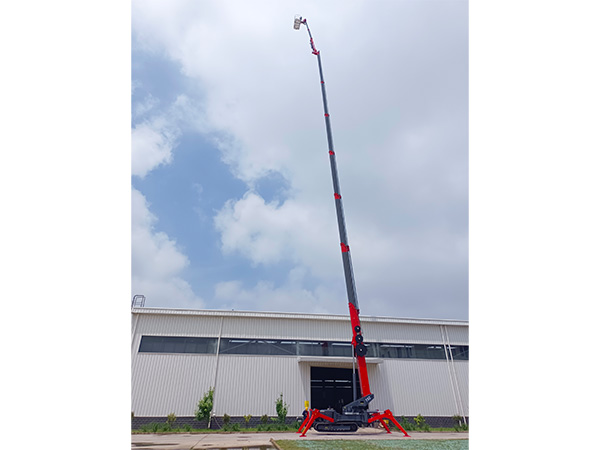

High Reach and Flexibility: With a maximum height of 52 meters, this spider lift allows operators to access elevated areas without requiring complex maneuvering. The straight boom design makes vertical positioning simple and precise.
Tracked Mobility: Equipped with a tracked base, the Goman 52m lift can easily navigate uneven or soft ground. It is ideal for challenging terrain, providing superior stability on muddy or rocky surfaces.
Electric & Hybrid Options: The lift is available with various power options, including electric and hybrid configurations, offering zero emissions and quiet operation for indoor use.
Safety & Stability: Automatic outrigger leveling ensures that the lift remains stable, even on slopes. The integrated tilt sensors and stabilization systems prevent tipping, making the lift safe for use in diverse environments.
 |
|
Efficient Design for Narrow Spaces: The compact design and adjustable tracked system allow the Goman 52m Telescopic Boom Spider Lift to fit through tight spaces, making it ideal for city environments and indoor use.
Durability & High-Performance Materials: Made with high-tensile steel and equipped with a hot-dip galvanized boom option, this lift offers long-lasting durability.
Versatility: This lift can be outfitted with various hydraulic tools, such as winches, making it adaptable to a wide range of tasks.
Ease of Operation: The intuitive PLC control system, combined with a 360° rotating basket, offers excellent maneuverability and efficiency for operators.
Building Facade Repairs: Ideal for accessing building heights and performing repairs safely and efficiently.
Streetlight Maintenance: Perfect for tasks like replacing bulbs and maintenance work on streetlights.
Signage Installation: Useful for installing vertical signage in high locations, ensuring precise placement.
Bridge Inspections: The lift’s ability to extend and reach significant heights makes it suitable for bridge and pillar inspections.
Event Setup and Maintenance: Suitable for use in arenas or other large venues where elevated work is required.
Vertical Lifting Tasks: With a 52m reach, the Goman Telescopic Boom Spider Lift is ideal for various vertical applications, from routine maintenance to complex repairs.
High Altitude Access: Ensures safety and stability for workers performing high-altitude tasks such as facade inspections and structural maintenance.
Remote Location Work: The tracked base and adjustable system allow the lift to work in remote or hard-to-reach areas, including forests or construction sites.
The Goman 52m Telescopic Boom Spider Lift is built using advanced manufacturing processes that ensure the highest standards of safety and durability. The key steps in the production process include:
Design and Engineering: The lift is designed by expert engineers to ensure maximum functionality and safety.
Material Selection: High-quality, high-tensile steel is used for the main structure, with a hot-dip galvanized finish available for the boom.
Assembly: All components, including the tracked base, platform, and control system, are assembled with precision.
Testing: Each lift undergoes rigorous testing to ensure it meets safety standards and performs efficiently under various conditions.
Proven Expertise: With years of experience in manufacturing high-performance lifts, Goman is a trusted supplier in the industry.
Custom Solutions: We offer customization options to meet specific needs, ensuring that each product is tailored to your requirements.
Quality Assurance: Every lift is rigorously tested to ensure it meets international standards, including ISO, CE, and ANSI certifications.
A: The Goman 52m lift is available with electric, hybrid, and diesel power options, providing flexibility based on your job site requirements.
A: The maximum load capacity of the Goman 52m lift is 300 kg, ensuring it can carry heavy tools and equipment during operation.
A: Yes, the electric and hybrid power options make this lift suitable for indoor use, especially in environments that require zero emissions and low noise.
A: The tracked base distributes weight evenly, providing stability on uneven or soft ground, such as construction sites or forested areas.
A: Yes, the Goman 52m Telescopic Boom Spider Lift comes with a one-year warranty, along with online technical support.
