P18
GomanLift

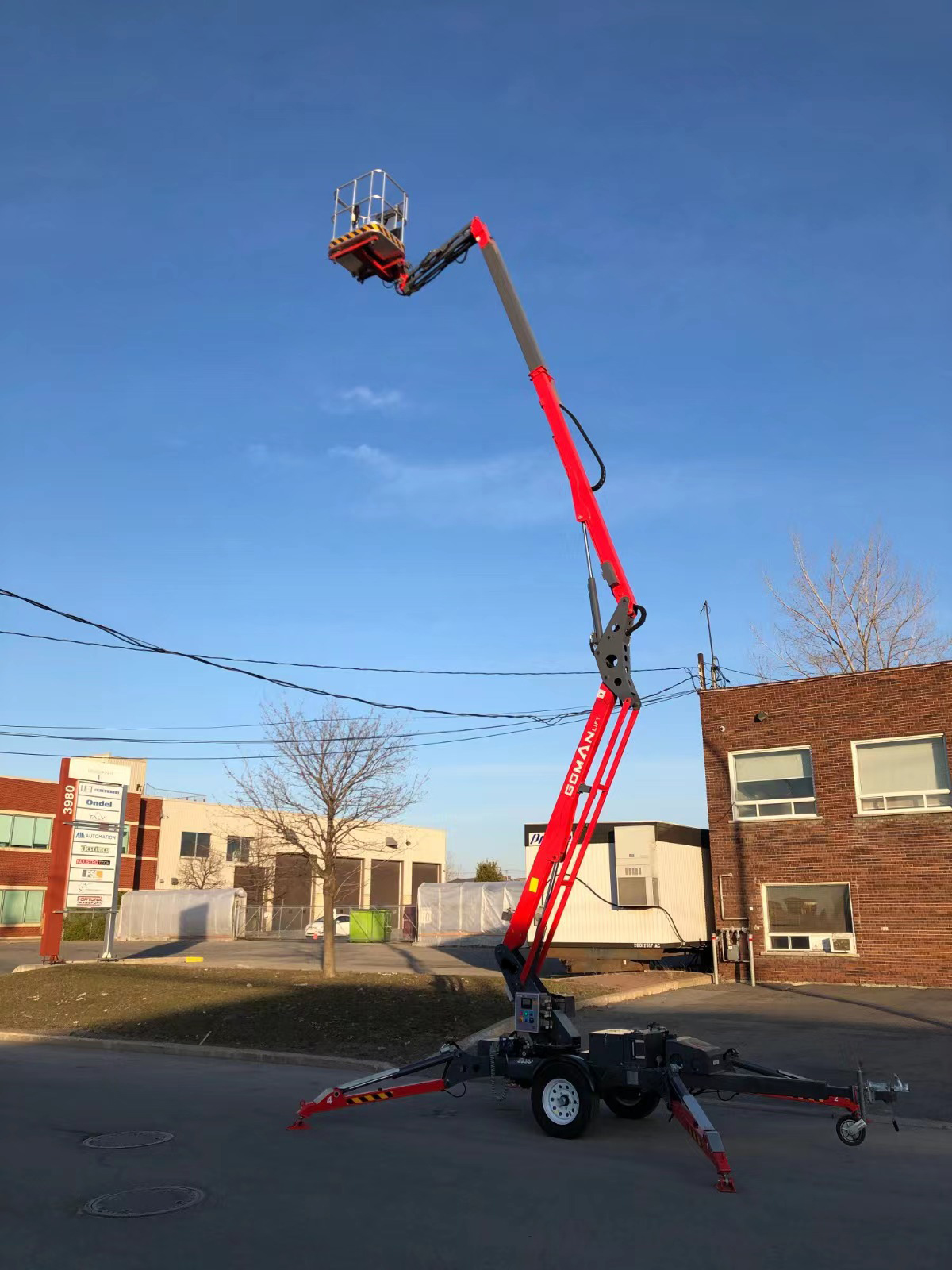

The 18.3m Trailer Mounted Work Platform (Model: P18) by GomanLift is a versatile aerial work solution designed for professionals needing flexible mobility across multiple job sites. As a towable access platform, it eliminates the need for a flatbed trailer, simplifying transportation between locations. Equipped with proportional controls and multiple power options, it delivers consistent performance comparable to other Goman spider lifts while prioritizing ease of transport and operation.

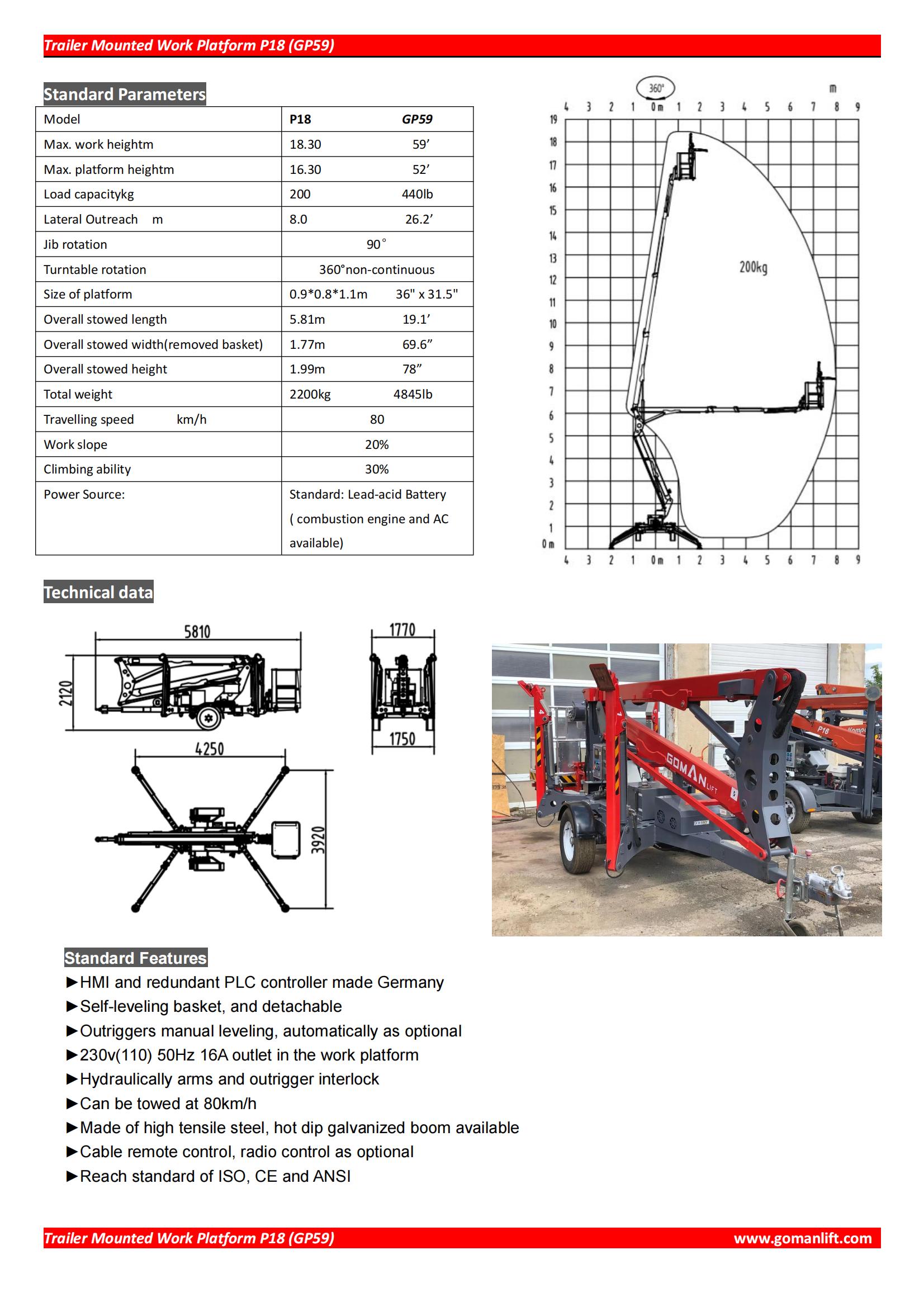

Parameter | Details |
Working Height | 18.3m (60ft) |
Horizontal Outreach (at 200kg/440lbs load) | 8.0m (26ft 3in) |
Stowed Dimensions (L×W×H) | 5.81m × 1.77m × 1.99m (19ft × 5ft 9in × 6ft 6in) |
Basket Size (L×W×H) | 0.9m × 0.8m × 1.1m (2ft 11in × 2ft 7in × 3ft 7in) |
Max Travel Speed | 80km/h |
Max Working Slope | 20% |
Total Weight (approx.) | 2400kg (5291 lbs) |
Power Options | Gas engine, diesel engine, battery, or AC |
The P18 features a streamlined structure that enables navigation through narrow passages and tight work areas. This design is particularly valuable for urban construction, indoor maintenance, or sites with space constraints, where larger aerial platforms may struggle to access.
Equipped with dual operation systems (cable control and remote control), the P18 offers versatility in maneuvering. Operators can choose the most suitable mode based on job site conditions, enhancing both efficiency and safety—especially in scenarios requiring precise positioning at height.
A high-performance HMI & PLC controller, housed in a durable stainless steel box, ensures stable logic control and extended service life. This system minimizes operational errors and supports consistent performance even in harsh environments, reducing downtime for maintenance.
Safety is integrated into every component:
Emergency lowering function: Enables rapid response to unexpected situations, protecting personnel at height.
Automatic outrigger leveling & turret rotation: Facilitates quick, secure stabilization with 360° non-continuous turret rotation, ensuring stability on uneven terrain.
Boom & outrigger interlock: A hydraulic safety mechanism prevents unsafe movements (e.g., boom operation without proper outrigger setup), reducing accident risks.
Compliance with CE EN280 standards: Meets European regulations for mobile elevating work platforms, validating its safety and reliability.
AC 16A power outlet in the basket: Provides direct power for tools at height, eliminating the need for extension cords and simplifying tasks like electrical repairs or installation.
Self-leveling basket: Maintains horizontal stability during operation. It can be optionally swapped with a hydraulic winch or other hydraulic tools, adapting to diverse work requirements.
High-tensile steel structure: Optional hot-dip galvanized boom enhances corrosion resistance, ideal for outdoor or humid environments, extending the platform's service life.
