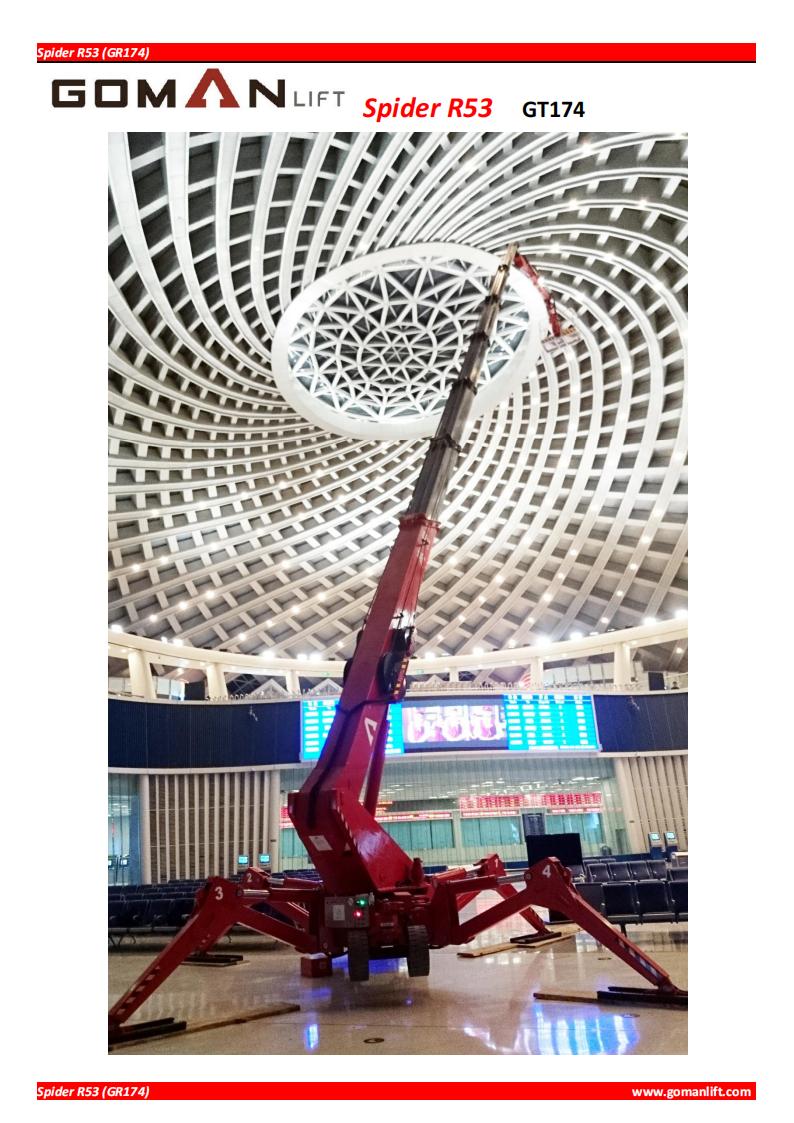

53m 6-wheel Self-propelled Cart Spider Boom Lift

Goman 6-Wheel Self-Propelled Cart Spider Boom Lift is a robust wheeled spider lift designed for work reaching heights ranging from 36 to 53.3 meters, the Goman 6-wheel self-propelled cart spider boom lift is an advanced aerial work platform ideal for urban facility maintenance, including atriums, malls, airports, and building facades etc.
Built with a robust and stable structure, it delivers exceptional vertical access with a high safety margin. Its high-mobility six-wheel drive system enables agile navigation through crowded or confined urban spaces, making it especially effective in busy environments.
The boom lift features an advanced PLC control system combined with precision hydraulic full-proportional control, ensuring smooth, responsive operation.
It is powered by a dual power system — a combustion engine for high mobility and an electric motor for quieter, zero-emission work at indoor or noise-sensitive sites.
For added flexibility, a third optional power source is available: either a lithium-ion battery or a maintenance-free AGM battery, offering extended runtime and energy efficiency.
Other additional devices such as ultrosonic anti-colision alarm, travel alarm, one-button positioning, flash lights, non-marking wheels, air-water outlet in basket and outrigger pads are available on customer's request.
Please contact an expert for more details!

Availability:

Quantity:



Inquire Add to Basket

Model:
R53
Brand:
GomanLift

Spider Lift wheeled spider lift cart spider lift Boom Lift spider boom lift

STANDARD FEATURES & APPLICATIONS

Goman 6-wheel Self-propelled Cart Spider Boom Lift R53

Compact Design – Enables access through narrow passages and tight workspaces

AC 16A Power Outlet in Basket – Convenient tool power supply directly at height

High-Performance HMI & PLC Controller – Durable stainless steel control box with advanced logic control for enhanced reliability

Dual Operation Modes – Cable control and remote control for flexible and safe maneuvering

Self-Leveling Basket – Ensures horizontal stability; optionally interchangeable with a hydraulic winch or other hydraulic tools

Diverse Movement Maneuvering – With both jib boom and basket 180° rotation coverage to cover hard to reach point

Emergency Lowing Button– Respond quickly to guard personnel safety in unexpected conditions

Automatic Outrigger Leveling & Turret Rotation – Quick and safe stabilization with 360° turret rotation work coverage

Robust 6-Wheel Cart Base – Offers greater mobility and smoother, quieter operation, ideal for indoor and high-traffic environments

Boom & Outrigger Interlock – Hydraulic safety system prevents unsafe movement

High-Tensile Steel Structure – Optional with hot-dip galvanized boom for superior corrosion resistance and durability

CE EN280 Compliant – Meets European standards for mobile elevating work platforms

IDEAL APPLICATIONS:

● Indoor Maintenance

Perfect for tasks such as lighting, HVAC servicing, and signage work in airports, rail stations, shopping malls, and atriums.

● Outdoor Construction

Suitable for exterior projects including building facades, overpasses and infrastructure inspection.

● Urban Environments with Space Constraints

Compact design and high mobility make it ideal for operation in dense city areas, narrow alleys, and work zones with limited access.

MODEL SPECIFICATIONS

█ -6～53m Working Vertical Reach: Ideal for a wide range of tasks in both indoor and outdoor environments, such as atrium maintenance, building facades and bridge checking.

█ 16.5m Horizontal Outreach At 200Kg Basket Load: Provides reliable reach over obstacles like walls, fences, or industrial equipment while maintaining full load capacity.

█ Compact Fold-up 8.51x1.5x2.3m: Features a narrow chassis and a sturdy containing turret structure for a compact fold-up size — enabling easy access through confined areas such as alleys, doorways, and indoor facilities.

█ Basket Size (LxWxH): 1.8mX0.8mX1.1m

█ Max Travel Speed: 50m/min

█ Max Working Slope: 20%/11.3°(slope angle)

█ Max Gradeability: 30%/16.7°(slope angle)

█ Self-Propelled Movement: Allows for autonomous driving and positioning, minimizing manual handling and significantly improving efficiency on the job site.

█ Hydraulic Outriggers with Automatic Leveling: Ensures stable setup on a slop and reduces preparation time compared to conventional lifts.

█ Advanced Stabilization Systems: Integrated tilt sensors and interlocked outriggers provide enhanced safety, preventing operation under unsafe conditions.

█ Total Weight (approx): 15T

█ Dual Power Sources Plus Back-up Battery Option: Standard with AC power system + diesel engine, optional with lithium-ion or AGM battery, which can offer zero-emission and low-noise operation — ideal for sensitive indoor spaces like warehouses, shopping centers, museums, or airports.
