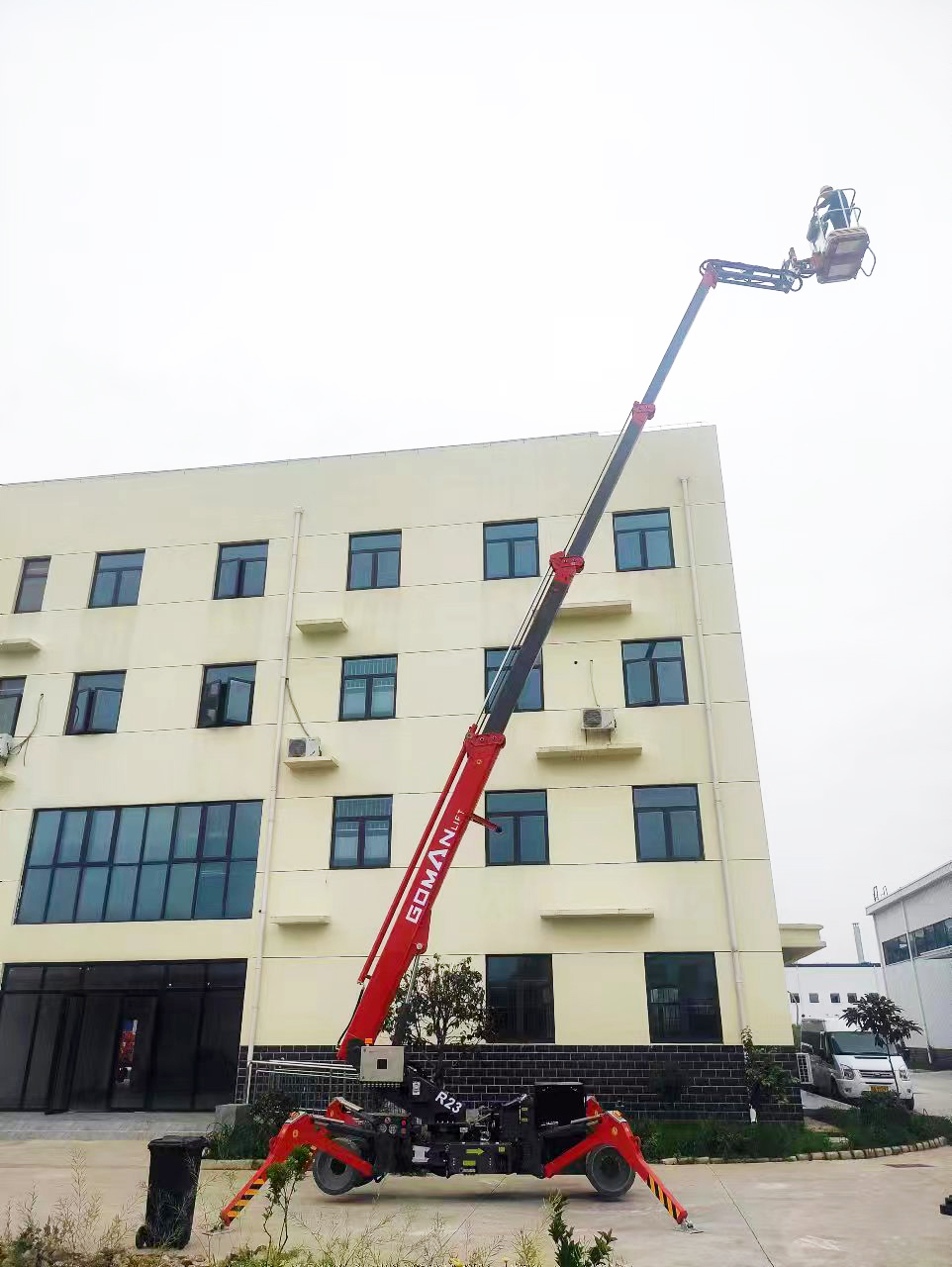

23m 4-wheel Self-propelled Cart Spider Boom Lift

Product Overview

Goman 23m 4-wheel self-propelled cart spider boom lift is engineered to conquer complex elevated access challenges. It combines robust structural integrity with agile navigation, delivering an optimal solution for high-demand aerial tasks without compromising on safety or efficiency.

• Impressive Reach: Achieves a 23-meter working height paired with a 10-meter horizontal outreach for exceptional obstacle clearance.

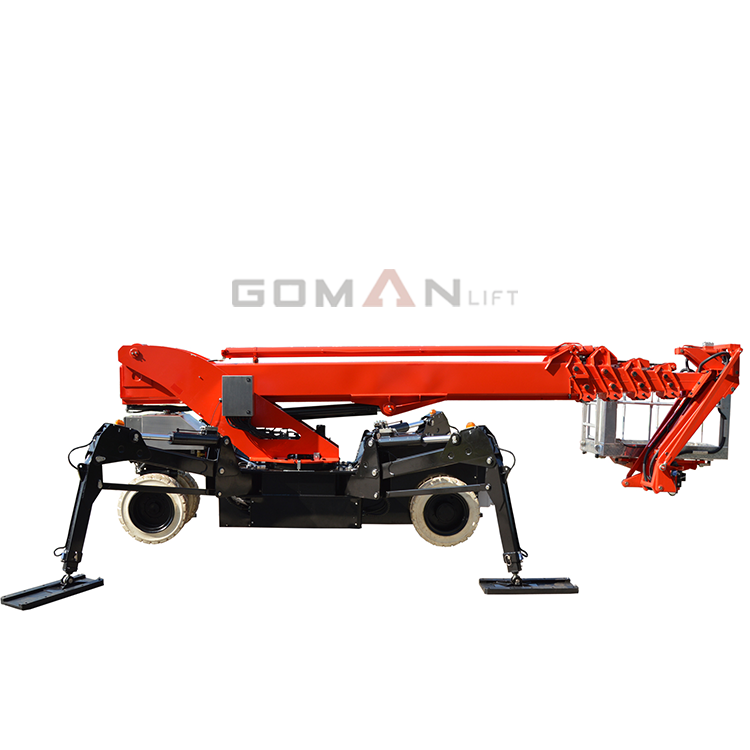

• Ultra-Compact Profile: Folds down to a mere 0.92 meters in width, granting effortless passage through confined corridors and single doorways.
• Versatile Power: A sophisticated dual-power system adapts seamlessly to both rugged outdoor environments and emission-sensitive indoor facilities.

Product Description

When elevated maintenance or complex installation projects demand absolute precision, the 23m 4-wheel self-propelled cart spider boom lift stands as a pinnacle of engineering. The moment you engage the high-performance PLC controller, you feel the seamless, vibration-free ascent powered by advanced hydraulics. Crafted from high-tensile steel, the boom extends with a quiet, reassuring hum, eliminating the unsettling sway often experienced in lesser elevated work platforms. This machine is deliberately designed to bridge the gap between heavy-duty outdoor construction requirements and sensitive indoor facility maintenance. The sleek, industrial-grade finish not only resists harsh weather and corrosive job site elements but also presents a professional, unobtrusive appearance when deployed in high-end commercial spaces like atriums, hospital lobbies, or museum halls.

Beyond its striking physical craftsmanship, this spider boom lift fundamentally transforms operational efficiency. By integrating a highly responsive dual-power system, it eradicates the need for multiple specialized machines. Operators can confidently maneuver across rugged, uneven outdoor terrain using the robust combustion engine, and then effortlessly transition to the whisper-quiet, zero-emission electric motor upon crossing the threshold into an enclosed facility. The intelligent weight distribution and smooth four-wheel-drive mechanism allow it to glide over surfaces without leaving a trace, ensuring that pristine flooring remains unblemished. Every weld, joint, and control interface has been meticulously refined to offer an intuitive user experience, significantly reducing operator fatigue and minimizing the time spent on setup and positioning.

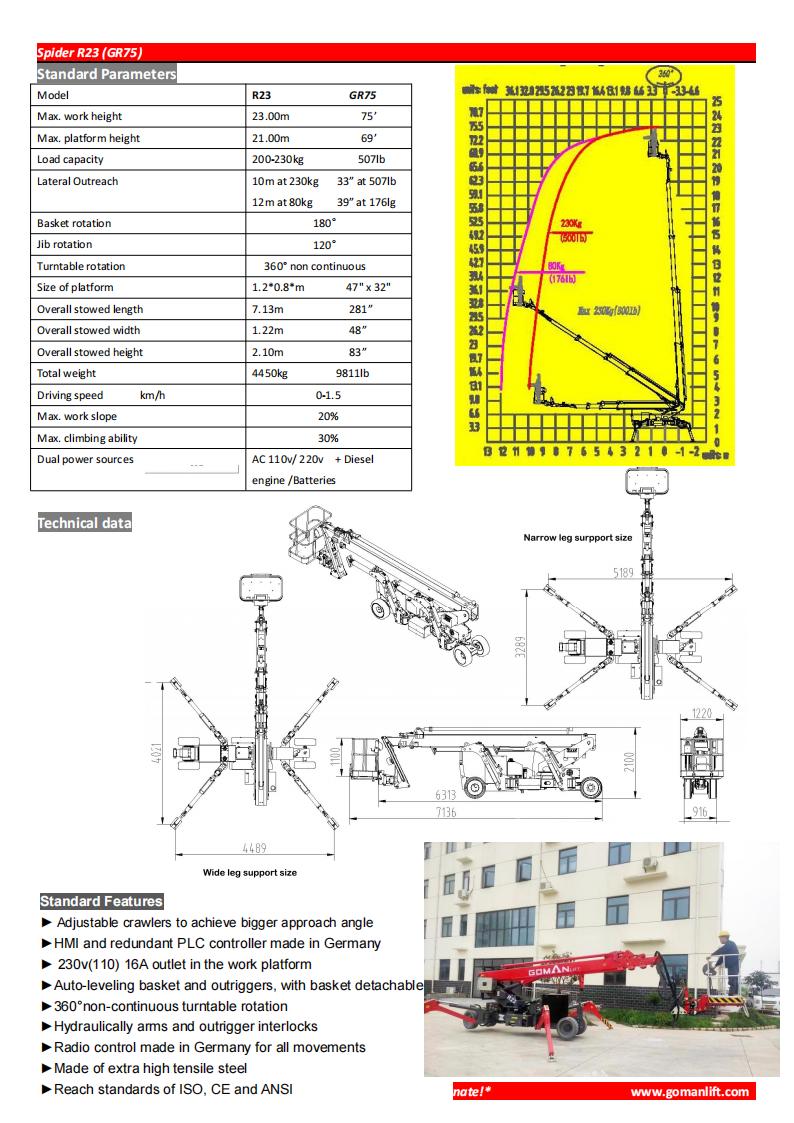

Product Specifications

Key Features & Highlights

Engineered to maximize productivity while safeguarding personnel, this elevated work platform incorporates a suite of sophisticated features. It is built to resolve the most persistent bottlenecks encountered during complex facility management and heavy infrastructure projects.

• Unrestricted Rotational Command: The 360-degree non-continuous turret rotation, paired with a 180-degree jib and basket articulation, grants operators absolute spatial dominance. This allows them to navigate around complex architectural obstacles without constantly repositioning the heavy base.
• Rapid Deployment Outriggers: The hydraulic outrigger system features an intelligent automatic leveling function. It instantly reads the terrain gradient and adjusts the footprint, drastically cutting down preparation time on sloped or uneven ground.
• Fail-Safe Interlock Architecture: An advanced hydraulic interlock mechanism physically prevents boom elevation unless all outriggers are firmly and correctly planted, virtually eliminating the risk of tip-overs due to operator oversight.
• Intuitive Dual-Mode Control: Housed within a weather-resistant stainless steel enclosure, the robust HMI and PLC system offers both tethered cable and wireless remote control options, giving operators the freedom to command the lift from the safest and most visible vantage point.
• Heavy-Duty Payload Capacity: Maintaining a full 200kg platform capacity even at its maximum 10-meter horizontal outreach ensures that two operators, along with their essential heavy tools, can work securely without triggering overload sensors.

Capabilities & Performance Dimensions

Evaluating an aerial work platform requires a deep dive into its operational dimensions. This equipment is meticulously calibrated to deliver high-yield performance across seven critical operational metrics, ensuring a rapid return on investment for large-scale procurement programs.

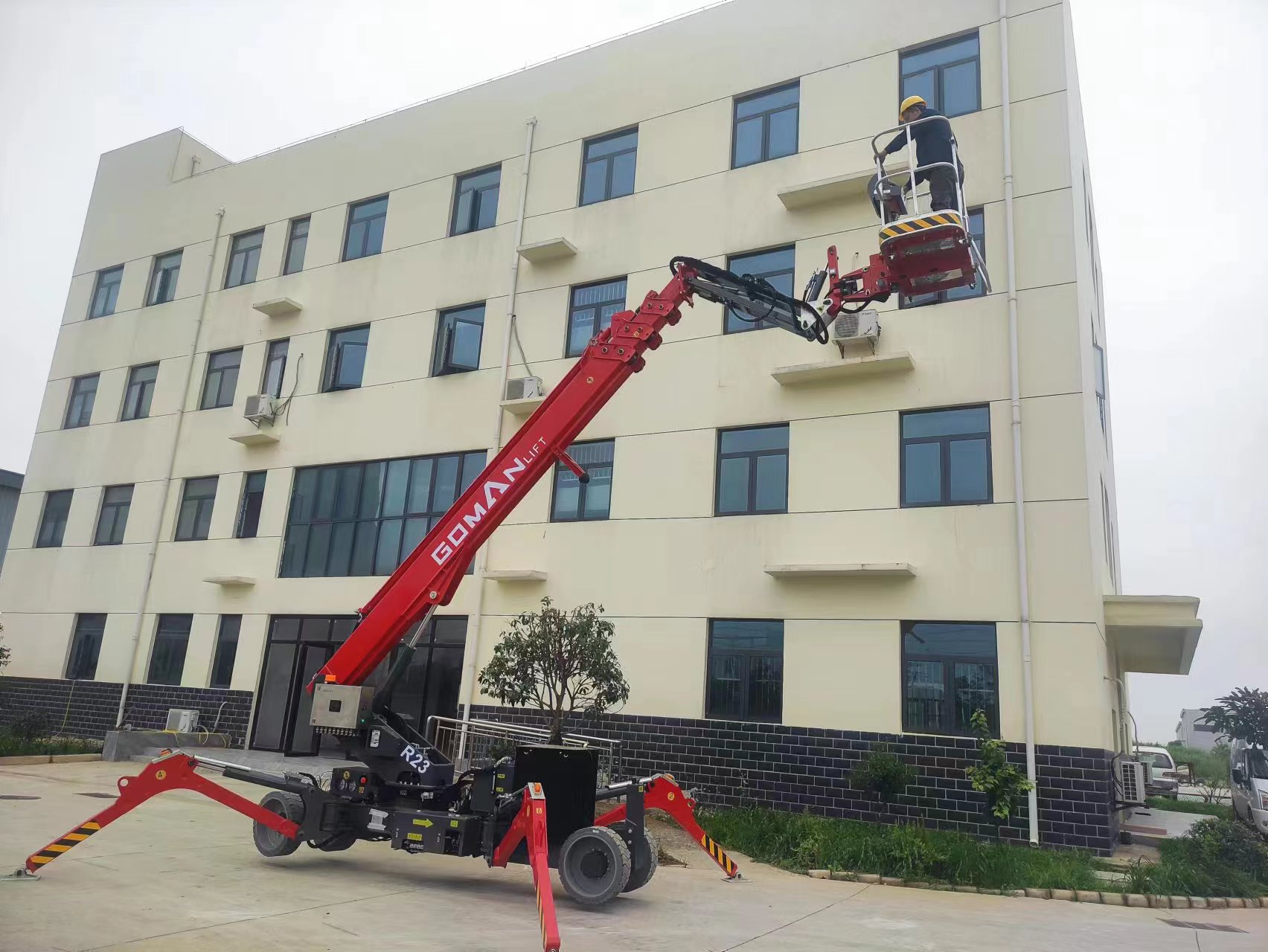

• Working Height & Outreach: The defining "up-and-over" capability is realized through a 23-meter maximum vertical reach and a 10-meter horizontal extension. This allows personnel to effortlessly bypass ground-level obstacles like industrial machinery, perimeter fences, or landscaping to reach the exact point of intervention.
• Compactness & Maneuverability: Designed for the realities of modern urban infrastructure, the machine folds into an ultra-narrow 0.92-meter width. This self-propelled chassis easily navigates through standard single doorways, congested corridors, and tight alleyways, turning previously inaccessible zones into workable areas.
• Power Options & Eco-friendliness: The standard dual-power configuration is a game-changer for hybrid job sites. It delivers aggressive torque for outdoor transit and instantly switches to silent, zero-emission electric power for indoor tasks, maintaining strict environmental compliance in sensitive zones.
• Terrain Adaptability & Stabilization: Unpredictable job site topographies are easily managed. With an impressive 30% gradeability and the capacity to operate on slopes up to 20%, the auto-leveling hydraulic outriggers establish a rock-solid foundation in seconds, regardless of rutted or inclined earth.
• Safety Features & Compliance: Built to the rigorous CE EN280 international standard, the lift is fortified with tilt sensors, emergency descent protocols, and hydraulic interlocks. These uncompromising safety layers protect the workforce and shield organizations from costly compliance liabilities.
• Smart Control & Operation Flexibility: The premium PLC controller facilitates millimeter-perfect positioning. By offering both remote and cable operation modes, alongside the 360° turret rotation, operators can orchestrate complex movements with fluid precision, drastically reducing task duration.
• Customization & Versatility: Adaptability drives utilization. The platform can be customized with non-marking tires for pristine floors, ultrasonic anti-collision sensors, or even modified to replace the basket with a hydraulic winch, transforming the lift into a multi-purpose material handling asset.

Why Choose Us

Procuring heavy-duty access equipment is a significant capital investment that demands a partner with proven engineering pedigree and unwavering reliability. As a leading manufacturer and global supplier, we do not just assemble machinery; we engineer comprehensive access solutions backed by decades of industry expertise and rigorous quality assurance protocols.

• Uncompromising Quality Control: Every unit undergoes exhaustive stress testing, from hydraulic pressure thresholds to electronic sensor calibration, ensuring that the machine performs flawlessly in the harshest industrial environments.
• Global Compliance Standards: Our manufacturing processes strictly adhere to ISO and CE EN280 certifications. You are investing in equipment that meets the highest international safety and operational benchmarks, mitigating operational risks.
• Direct Manufacturer Support: By sourcing directly from the factory floor, you bypass intermediary delays and gain immediate access to our elite technical engineering team for troubleshooting, maintenance guidance, and customized modifications.
• Rapid Parts Availability: We maintain a comprehensive global inventory of critical components, from PLC modules to hydraulic seals, ensuring that your equipment experiences minimal downtime and remains a productive asset year-round.

Frequently Asked Questions (FAQ)

1. How does the dual-power system transition between indoor and outdoor operations?

The transition is seamless and operator-controlled. For outdoor transit and rough terrain, the combustion engine provides the necessary high torque. When moving indoors, the operator simply switches to the AC electric motor (or optional lithium/AGM batteries). This instantly cuts off exhaust emissions and reduces operational noise, making it perfectly suited for enclosed, poorly ventilated, or noise-sensitive environments.

2. Can the platform be safely operated on uneven construction sites?

Absolutely. The lift is engineered with a maximum gradeability of 30% for traveling across rugged terrain. For elevated work, the intelligent hydraulic outriggers feature an automatic leveling system that can compensate for slopes up to 20% (11.3°). Integrated tilt sensors continuously monitor the chassis angle, instantly halting boom movement if safety thresholds are breached.

3. What maintenance is required for the hydraulic interlock system?

The hydraulic interlock system is designed for high durability and low maintenance. We recommend a visual inspection of the hydraulic lines and outrigger sensors before each shift. A comprehensive fluid analysis and pressure test should be conducted every 500 operating hours. The stainless steel housing protects the critical PLC components from dust and moisture, significantly reducing electronic wear and tear.

4. Is it possible to customize the basket for specific material handling tasks?

Yes, the modular design of the boom tip allows for significant versatility. The standard self-leveling passenger basket can be detached and replaced with specialized attachments, such as a hydraulic winch. This transforms the aerial platform into a precise material lifting crane, highly beneficial for glass installation, HVAC placement, or structural steel positioning.

5. How do the non-marking tire options benefit facility management?

Standard heavy-duty tires can leave stubborn black scuff marks on premium indoor surfaces like polished concrete, terrazzo, or epoxy floors. Our optional non-marking tires are manufactured from a specialized light-colored rubber compound that provides identical traction and load-bearing capabilities without transferring carbon marks, drastically reducing post-job cleanup costs for facility managers.
