Introduction
The 48m 6-wheel self-propelled cart spider boom lift, model R48 from GomanLift, is a versatile aerial work platform engineered to tackle high-reach tasks across diverse environments. Designed for both indoor and outdoor applications, this wheeled spider lift combines compact mobility with robust performance, making it a reliable choice for urban maintenance, construction, and facility upkeep. With a focus on safety, efficiency, and adaptability, it addresses the challenges of narrow spaces, busy work zones, and varied terrain—all while meeting international standards for mobile elevating work platforms.
Core Features
Space-Saving Design
Its streamlined structure allows easy passage through narrow corridors, tight doorways, and confined workspaces, ensuring access to areas where larger equipment cannot operate.
Flexible Operation Modes
Equipped with dual control options—wired control and remote control—operators can maneuver the lift safely from multiple positions. The self-leveling basket (interchangeable with hydraulic winches or other tools) and 180° rotation for both the jib boom and basket extend coverage to hard-to-reach spots.
Enhanced Safety Systems
Safety is prioritized with an emergency lowering button for rapid response in unexpected situations. Automatic outrigger leveling and 360° turret rotation ensure stable positioning, while a hydraulic interlock system between the boom and outriggers prevents unsafe movements. The lift is fully compliant with CE EN280 standards, guaranteeing adherence to European safety regulations.
Durable & Efficient Build
Constructed with high-tensile steel, the R48 offers long-term durability. For corrosive environments, an optional hot-dip galvanized boom is available to resist rust. A high-performance HMI & PLC controller, housed in a stainless steel box, ensures reliable logic control and operation.
On-Board Convenience
The basket includes an AC 16A power outlet, providing direct power for tools at height—eliminating the need for extended cables or external generators.
Power Options
The R48 features a dual-power system to adapt to different work scenarios:
Combustion engine: Delivers high mobility for outdoor or heavy-duty operations.
Electric motor: Enables quiet, zero-emission performance—ideal for indoor spaces, shopping malls, or noise-sensitive areas.
An optional third power source is available for extended runtime: either a lithium-ion battery or a maintenance-free AGM battery, enhancing energy efficiency for all-day use.
Applications
Indoor Maintenance: Perfect for tasks like lighting repairs, HVAC servicing, and signage installation in airports, train stations, shopping centers, and atriums.
Outdoor Construction: Suitable for exterior projects, including building facade work, overpass inspections, and infrastructure maintenance.
Urban Constrained Spaces: Thrives in dense city areas, narrow alleys, and high-traffic zones where space is limited.

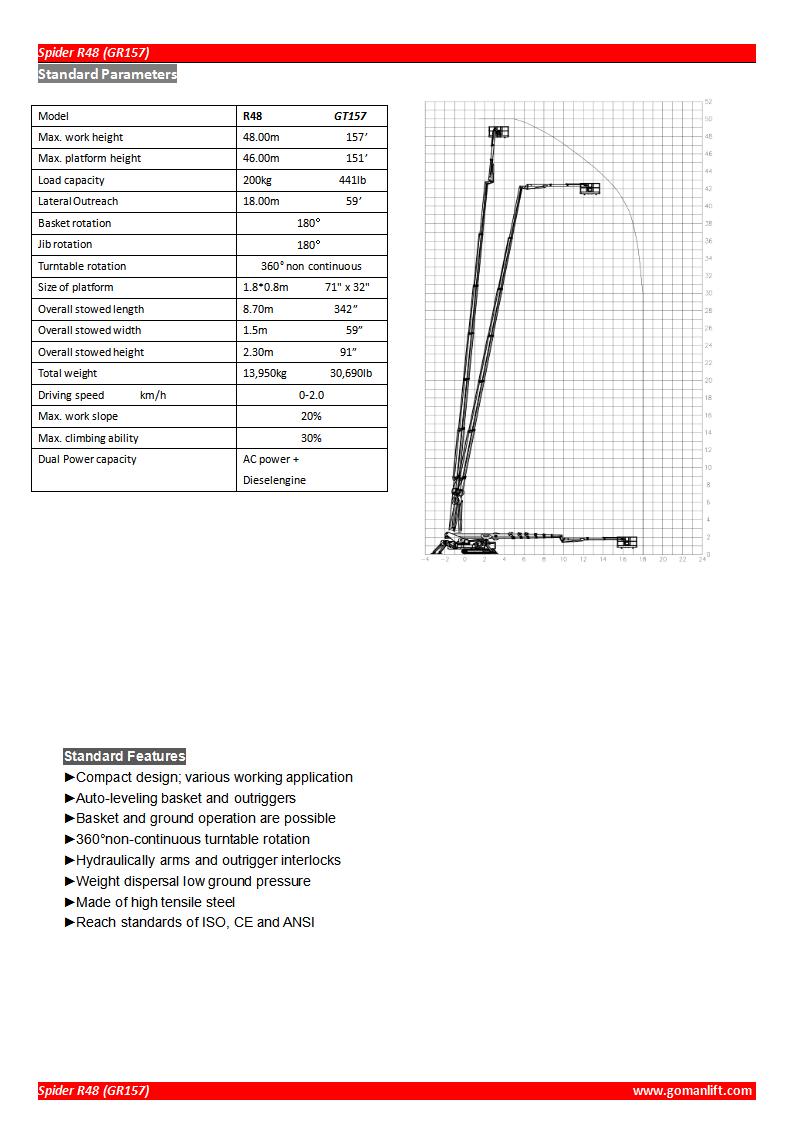

Technical Specifications
Parameter | Detail |
Working Height | 48m |
Horizontal Outreach (at 200kg basket load) | 18m |
Folded Dimensions (LxWxH) | 8.7m x 1.5m x 2.3m |
Basket Size (LxWxH) | 1.8m x 0.8m x 1.1m |
Travel Speed | 50m/min |
Max Working Slope | 20% (11.3°) |
Max Gradeability | 30% (16.7°) |
Total Weight (approx.) | 13.95 tons |
Compliance | CE EN280 |
Optional Add-Ons
Customize the R48 to your needs with optional features:
Why Choose the R48?
Whether you're maintaining indoor facilities, working on urban construction sites, or navigating tight spaces, the 48m 6-wheel self-propelled cart spider boom lift R48 delivers the reach, safety, and flexibility required to get the job done efficiently. Backed by GomanLift’s commitment to quality, it's a smart investment for long-term productivity.
