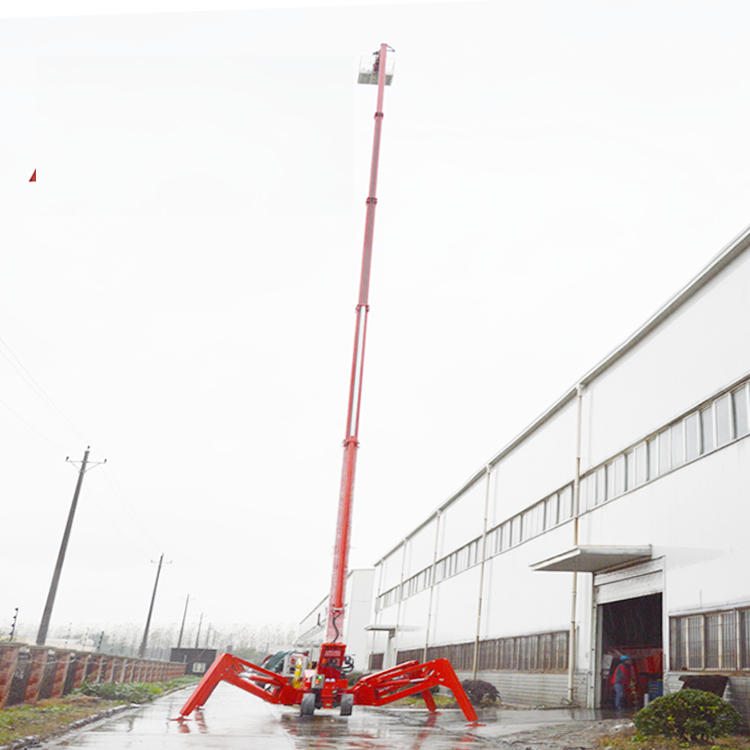

36m 4-wheel Self-propelled Cart Spider Boom Lift

Product Overview

As a leading manufacturer and supplier of premium aerial work platforms, we introduce the 36m 4-wheel self-propelled cart spider boom lift. Engineered for extreme reach and tight access, this robust machine elevates operational efficiency for large-scale maintenance and construction projects.

• 36-meter maximum working height for superior vertical and horizontal reach.
• Compact 4-wheel cart chassis designed to navigate narrow passages and restrictive doorways.
• Dual power options ensuring seamless transitions between indoor and outdoor environments.
• Advanced CE EN280 compliant safety mechanisms for absolute operator protection.
• Integrated intelligent control systems for precise, vibration-free maneuvering.

Product Description

Step into a new realm of aerial accessibility with our 36m 4-wheel self-propelled cart spider boom lift. When your projects demand uncompromising vertical reach combined with the agility to navigate restrictive urban corridors, this lifting equipment stands as the ultimate solution. The cold, high-tensile steel structure exudes industrial-grade durability, while the smooth, quiet hum of its dual-power system ensures seamless transitions from rugged outdoor construction sites to echo-prone indoor atriums without disrupting the surrounding environment. Every weld and joint is meticulously crafted, reflecting a commitment to heavy-duty performance and long-lasting reliability in the most demanding work conditions.

Operating this machine feels incredibly intuitive and grounded, despite the towering 36-meter elevation. The tactile feedback from the brushed stainless steel HMI and PLC control box gives operators absolute confidence, translating precise finger movements into fluid, vibration-free boom extensions. By eliminating the typical sway and shudder found in lesser platforms, your crew can focus entirely on the task at hand—whether that involves intricate HVAC installations, expansive facade restorations, or delicate structural inspections. This is not merely a piece of lifting machinery; it is a strategic asset designed to accelerate project timelines, reduce manual labor risks, and significantly boost your operational output.

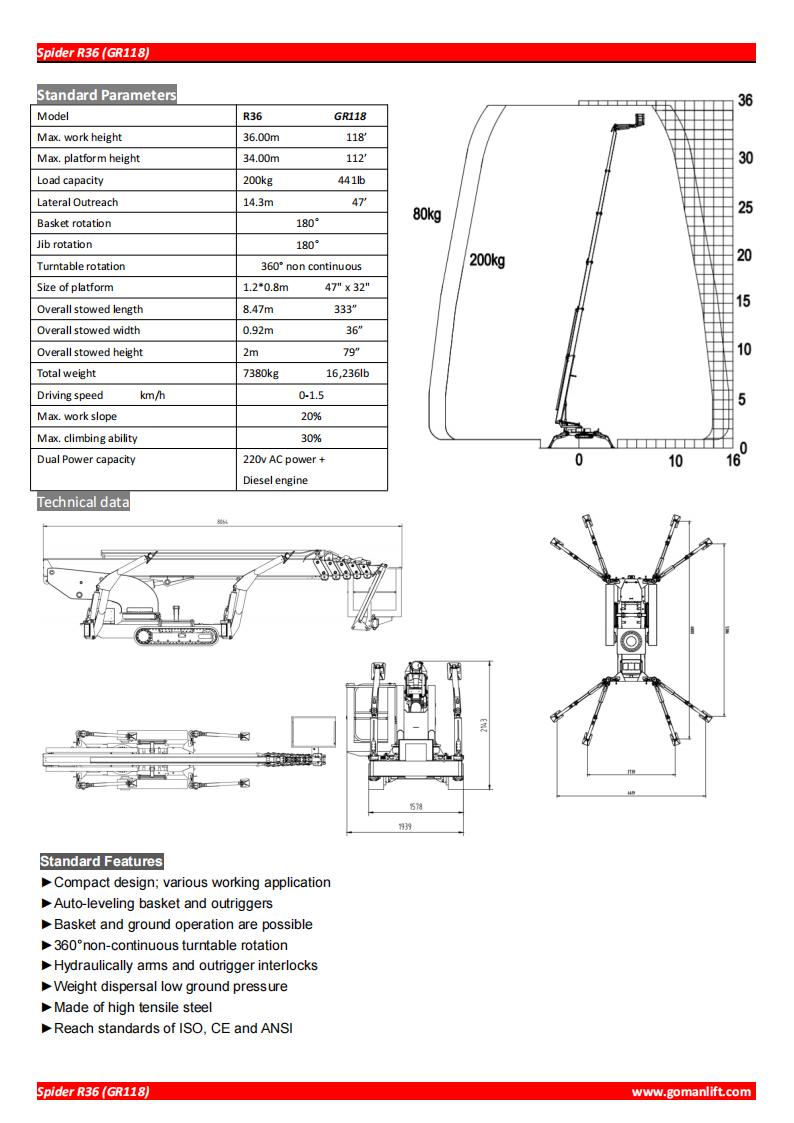

Product Specifications

Key Features & Highlights

Maximizing productivity at height requires equipment that anticipates the challenges of complex job sites. This 36m spider boom lift is engineered with an array of advanced features that directly address the pain points of facility management, municipal maintenance, and large-scale contracting operations.

• Unrestricted Maneuverability: The robust 4-wheel cart base glides effortlessly over polished concrete floors while maintaining the aggressive traction needed for uneven outdoor terrain, significantly cutting down transport and setup times.
• Intelligent Control Architecture: Encased in a weather-resistant, brushed stainless steel box, the high-performance HMI and PLC controller offers rapid processing of operator commands, ensuring lag-free, pinpoint positioning at maximum extension.
• Integrated Power Access: An onboard AC 16A power outlet located directly in the basket eliminates the hazard of dangling extension cords, allowing crews to power heavy-duty drills, grinders, and diagnostic tools safely at 36 meters in the air.

Advanced Engineering Dimensions

Working Range & Capacity

Achieving maximum spatial coverage without constantly repositioning the base unit is crucial for operational efficiency. This lift delivers extraordinary vertical and horizontal reach capabilities designed to conquer the most challenging architectural layouts.

• 36-Meter Elevation: Grants immediate, stable access to towering infrastructure, high-rise building facades, and expansive vaulted ceilings.
• High-Capacity Payload: Safely accommodates up to 200kg, effortlessly supporting multiple operators alongside heavy installation materials and specialized tooling simultaneously.

Safety & Stability

Protecting your workforce is non-negotiable. We have integrated a multi-layered, fail-safe safety architecture that actively monitors and mitigates risks during every second of operation.

• Hydraulic Interlock System: Prevents any boom elevation unless all outriggers are firmly deployed and perfectly leveled, completely eliminating tip-over risks on uneven ground.
• Automatic Basket Leveling: Continuously maintains a perfectly horizontal floor for the operator, regardless of the boom's fluctuating angle, drastically reducing fatigue and spatial disorientation.
• Emergency Protocols: Features an instantly accessible emergency lowering button that allows a safe, controlled descent even in the highly unlikely event of a total power failure.

Mobility & Terrain Adaptability

Transitioning between different work environments should not require logistical nightmares or multiple specialized machines. This unit is built to conquer diverse ground conditions with absolute ease.

• Compact Stowed Dimensions: Meticulously engineered to compress its profile, enabling the entire unit to pass smoothly through standard industrial double doors and navigate narrow alleyways.
• 4-Wheel Drive Traction: Delivers superior grip and torque distribution, allowing the machine to traverse muddy construction sites and climb significant gradients without losing momentum.
• Non-Marking Operation: The smooth acceleration profile and specialized tire configurations ensure pristine indoor flooring, such as marble or polished concrete, remains undamaged during transit.

Power & Eco-Friendliness

Modern projects increasingly demand compliance with strict environmental regulations and noise ordinances. Our dual-power architecture provides the ultimate flexibility for forward-thinking contractors.

• Bi-Energy System: Seamlessly switch between a robust combustion engine for high-torque outdoor travel and a clean electric motor for sensitive indoor tasks.
• Zero Emission Capability: Operate deep inside shopping malls, airport terminals, and enclosed warehouses without triggering ventilation concerns, carbon monoxide alarms, or environmental fines.
• Acoustic Optimization: The electric mode operates with a quiet, unobtrusive hum, making it the ideal choice for night-time maintenance in residential districts or active commercial spaces.

Control & Operation Convenience

Absolute precision at 36 meters requires flawless, instantaneous communication between the operator and the machine. The control suite is designed for total mastery over movement.

• Dual Operation Modes: Choose between a secure, hardwired cable control for localized setup or a wireless remote control for superior visibility while walking the machine through complex obstacles.
• 360° Non-Continuous Rotation: The turret spins infinitely in either direction, drastically reducing the time spent retracting and repositioning the boom arm when switching work zones.
• 180° Articulation: Both the jib and the basket feature 180-degree rotation, enabling operators to hook around structural beams and reach hidden maintenance points that linear booms cannot access.

Durability & Maintenance

A high-performance asset must deliver a strong return on investment through relentless longevity and minimized downtime. Every component is selected for maximum endurance.

• High-Tensile Steel Construction: Resists bending and torsional stress under maximum load, ensuring structural integrity and platform stability over decades of rigorous daily use.
• Corrosion Resistance: Available with an optional hot-dip galvanized boom, providing an impenetrable shield against rust in harsh, high-humidity, or corrosive marine environments.
• Modular Component Access: Critical hydraulic manifolds and electrical relays are housed behind easy-access panels, streamlining routine inspections and expediting necessary servicing.

Versatility & Application

Adaptability translates directly to higher utilization rates and better project profit margins. This equipment transforms to meet the specific demands of your diverse daily contracts.

• Indoor Facility Management: The perfect companion for servicing atrium lighting arrays, complex HVAC ductwork, and suspended signage in expansive commercial spaces.
• Heavy Construction Support: Excels in exterior facade glazing, bridge structural inspections, and municipal infrastructure repairs where reach and stability are paramount.
• Optional Interchangeable Attachments: Swap the standard personnel basket for a hydraulic material winch, instantly converting the lift into a precise hoisting tool for heavy steel beams or large glass panels.

Why Choose Us

Procuring heavy-duty lifting equipment is a critical investment that shapes the safety, capability, and efficiency of your future projects. Partnering with a dedicated manufacturer and supplier guarantees that you receive not only a superior piece of machinery but also an ecosystem of unwavering professional support.

• Direct-from-Manufacturer Value: By eliminating intermediaries, we provide highly competitive pricing structures without ever compromising on the premium grade of our materials or the precision of our engineering.
• Rigorous Quality Assurance: Every single unit undergoes exhaustive load testing, hydraulic pressure evaluations, and electronic diagnostic checks before leaving our facility, ensuring absolute out-of-the-box readiness.
• Comprehensive Technical Support: Our team of specialized engineers offers extensive training materials, rapid-response troubleshooting, and a reliable global pipeline for authentic replacement parts.
• Global Compliance: Manufacturing strictly to CE EN280 standards means our equipment meets the most stringent international safety and operational regulations, giving you total peace of mind on any job site.

Frequently Asked Questions (FAQ)

To assist you in evaluating the technical capabilities of our aerial work platforms, we have compiled detailed answers to the most common inquiries regarding performance, maintenance, and deployment.

1. How does the bi-energy power system function in practical applications?

The bi-energy system allows the operator to manually switch between a combustion engine and an electric motor depending on the environment. For outdoor transit over rough terrain, the engine provides high torque and unlimited range. Once positioned indoors or in a noise-sensitive area, the operator switches to the electric motor, which runs on a plug-in power source or battery pack, ensuring zero emissions and near-silent operation without sacrificing lifting capacity.

2. Can the 4-wheel cart base handle significant inclines during transit?

Yes. The robust 4-wheel drive system is engineered with high-displacement hydraulic motors that deliver exceptional tractive effort to each wheel. This allows the machine to confidently navigate steep loading ramps and uneven construction site gradients up to its rated climbing ability, all while maintaining optimal ground contact and preventing wheel slippage.

3. What is the process for interchanging the personnel basket with the hydraulic winch?

The attachment interface features a highly secure quick-release pin mechanism integrated with drip-free hydraulic quick-couplers. Two trained technicians can safely detach the standard personnel basket, mount the hydraulic winch attachment, and connect the auxiliary hydraulic lines in a matter of minutes. This modularity instantly adapts the machine for heavy material hoisting without requiring specialized heavy machinery tools.

4. How does the boom and outrigger interlock system enhance site safety?

The interlock is a fail-safe hydraulic and electronic network designed to prevent human error. Sensors on the outriggers continuously detect ground pressure and chassis leveling. The PLC controller will physically lock out all boom elevation and extension functions until all four outriggers are properly deployed and the chassis is perfectly leveled, making accidental tip-overs virtually impossible.

5. What routine maintenance is required for the high-tensile steel boom sections?

Maintenance is highly streamlined by design. We recommend a visual inspection of the internal wear pads and a light application of specified industrial grease to the sliding surfaces every 250 operating hours to ensure smooth telescoping. The optional hot-dip galvanized coating significantly reduces the need for touch-up painting or rust mitigation, drastically lowering long-term upkeep efforts and costs.
