X23E
GomanLift

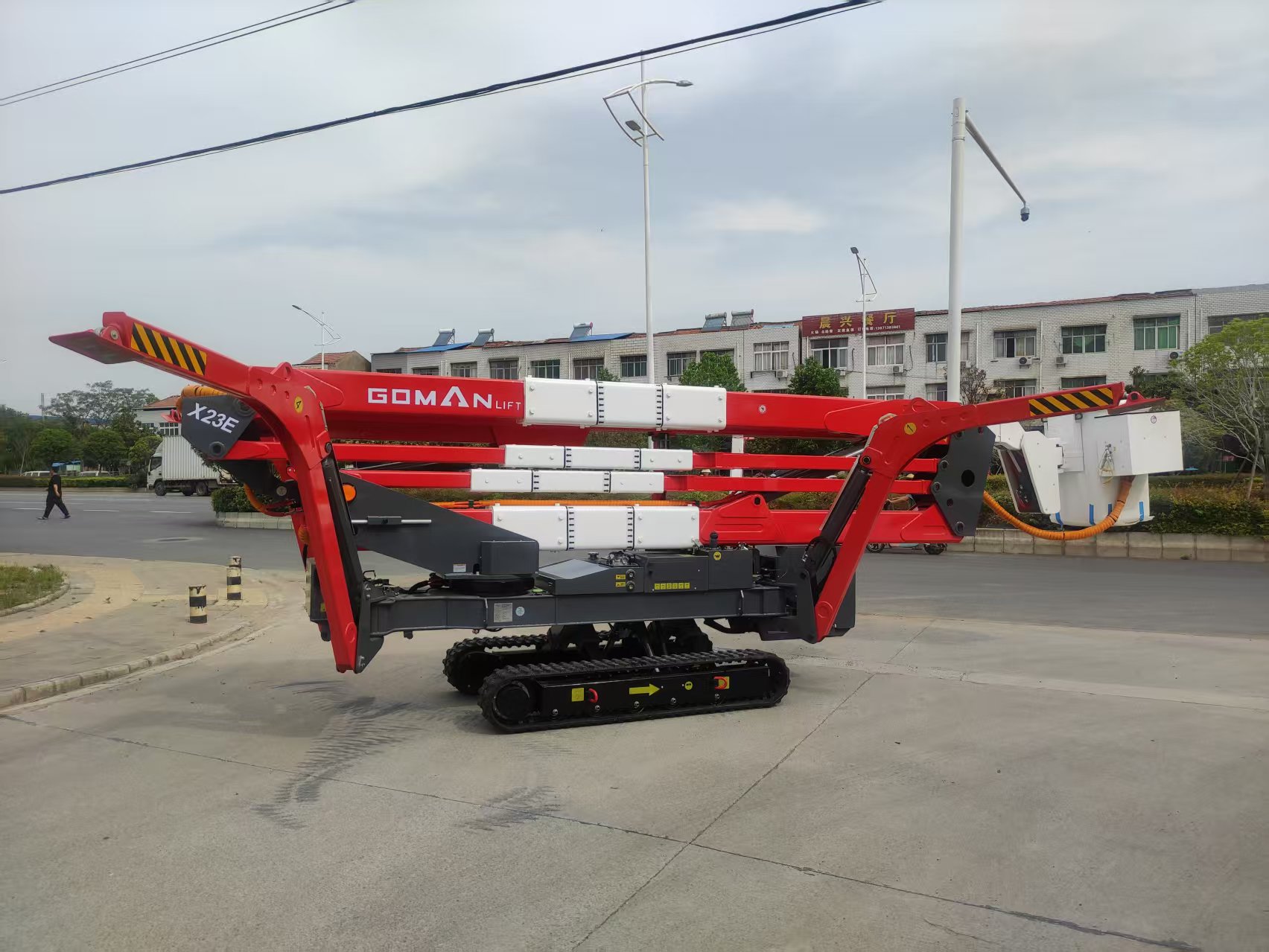

Sourced directly from a premier equipment manufacturer, the 23m Insulated Spider Lift is engineered for demanding high-voltage environments. As a trusted supplier solution, this heavy-duty aerial platform combines robust engineering with exceptional safety standards.
Step into the future of high-altitude utility maintenance with the 23m Insulated Spider Lift, a masterclass in heavy-duty engineering and meticulous craftsmanship. The moment you run your hands along the tough insulated integration of the three-section folded boom, you can feel the uncompromising structural integrity designed to withstand the harshest outdoor elements. When the Kubota diesel engine hums to life, it delivers a reassuring, steady vibration that speaks of raw, dependable power, transitioning seamlessly into whisper-quiet operation when switched to AC power. Every movement of the hydraulic system is remarkably fluid, eliminating the jarring jolts typically associated with heavy aerial platforms.
The tactile feedback from the stainless steel control box and the ergonomic grip of the radio remote control provide operators with absolute confidence, translating minute finger movements into exact boom positioning. This lift is not just a piece of machinery; it is a highly specialized solution built to conquer uneven terrains, navigate through restrictive gateways, and elevate personnel safely into the canopy of live utility lines. By bridging the gap between rugged terrain adaptability and clinical precision, this insulated tracked lift significantly reduces project downtime and elevates operational safety, transforming daunting high-voltage maintenance tasks into routine, highly controlled procedures.
Our engineering team has meticulously calibrated every dimension and capacity to ensure this insulated tracked lift performs flawlessly under rigorous conditions. The following technical parameters detail the exact capabilities, dimensions, and power configurations of the unit.

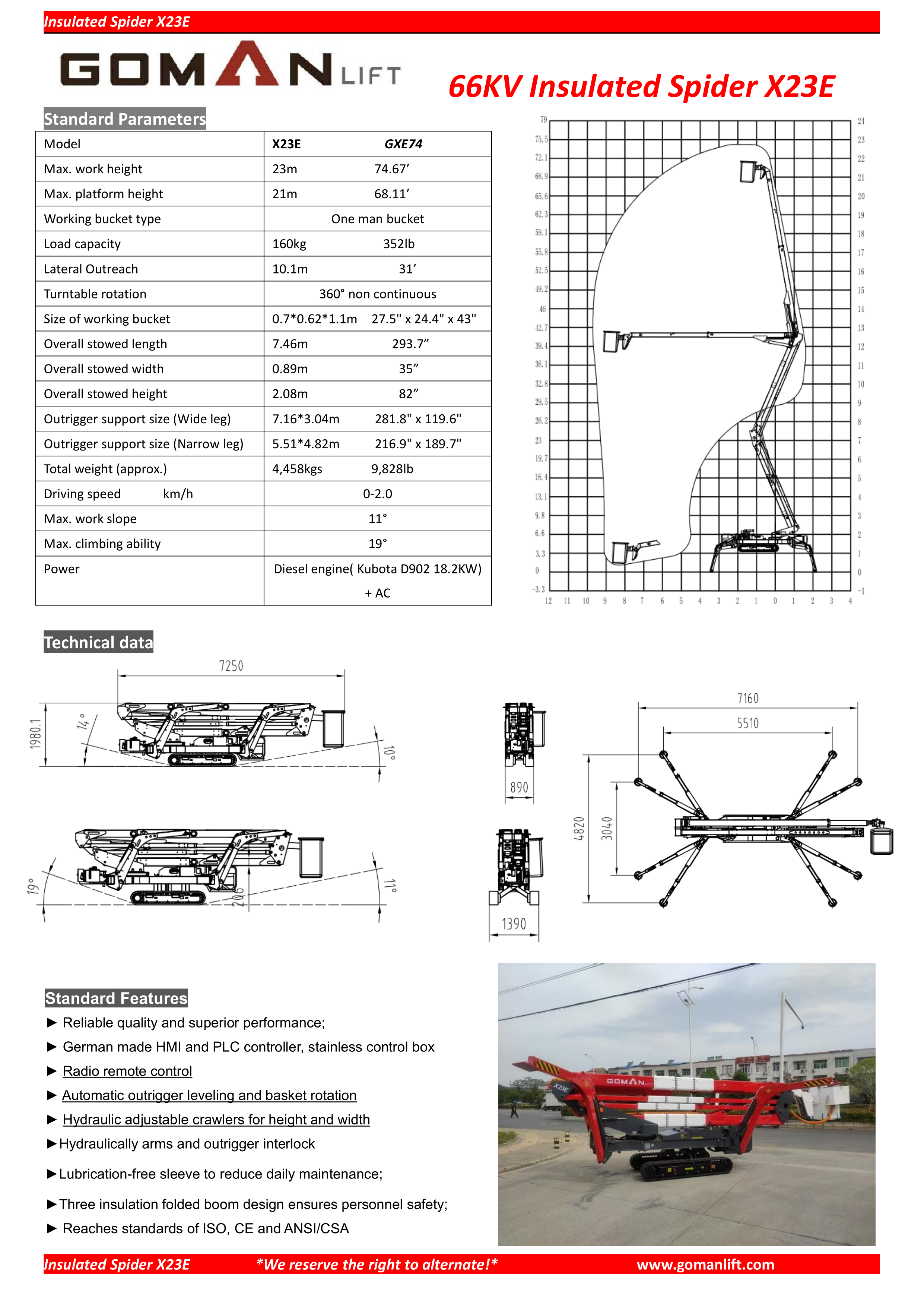

| Model | X23E | GXE74 |
|---|---|---|
| Max. work height | 23m | 74.67' |
| Max. platform height | 21m | 68.11' |
| Working bucket type | One man bucket | |
| Load capacity | 160kg | 352lb |
| Lateral Outreach | 10.1m | 31' |
| Turntable rotation | 360° non continuous | |
| Size of working bucket | 0.7*0.62*1.1m | 27.5" x 24.4" x 43" |
| Overall stowed length | 7.46m | 293.7" |
| Overall stowed width | 0.89m | 35" |
| Overall stowed height | 2.08m | 82" |
| Outrigger support size (Wide leg) | 7.16*3.04m | 281.8" x 119.6" |
| Outrigger support size (Narrow leg) | 5.51*4.82m | 216.9" x 189.7" |
| Total weight (approx.) | 4,458kgs | 9,828lb |
| Driving speed | 0-2.0 km/h | |
| Max. work slope | 11° | |
| Max. climbing ability | 19° | |
| Power | Diesel engine( Kubota D902 18.2KW) + AC | |
Engineered for excellence, this high-voltage aerial platform integrates cutting-edge technology with rugged mechanics. Every component has been selected to maximize operational efficiency, minimize downtime, and provide an unparalleled user experience in the field. Here are the standard features and advantages that set this equipment apart:
These core attributes ensure that fleet managers and project supervisors can deploy the unit with absolute certainty, knowing it will perform consistently even in the most challenging environments.
Understanding the intricate demands of utility maintenance, forestry, and heavy construction, this aerial platform is built around six foundational engineering dimensions. Each aspect is tailored to resolve specific on-site challenges, enhancing both safety and productivity.
When working near live power lines or conducting municipal tree trimming, operator safety is the absolute priority. This unit delivers an exceptional 66KV insulation rating, far exceeding the industry standard of 46KV. Combined with the three insulation folded boom design, it creates a formidable barrier against electrical hazards, granting personnel the ultimate peace of mind.
Navigating restricted municipal zones or rugged forestry landscapes requires exceptional agility. The hydraulic adjustable crawlers for height and width allow the machine to compress its footprint to pass through narrow gates, then expand for maximum stability. Paired with automatic outrigger leveling, the unit deploys rapidly and securely on slopes up to 11 degrees and uneven grounds.
Executing delicate maneuvers at 23 meters in the air demands flawless human-machine interaction. By utilizing a German made HMI and PLC controller alongside a highly responsive radio remote control, operators experience buttery-smooth boom articulation. This setup provides an unrestricted field of vision, allowing for pinpoint accuracy whether controlling from the basket or the ground.
Equipment longevity and maintenance overhead are critical factors for fleet expansion. The integration of a stainless control box effectively resists harsh weather corrosion. Furthermore, the innovative lubrication-free sleeve drastically cuts down the hours spent on daily greasing routines, significantly lowering maintenance labor costs and boosting the machine's active rental lifecycle.
Preventing operator error is just as important as structural strength. The hydraulically arms and outrigger interlock acts as a foolproof safety mechanism, completely restricting boom movement until the outriggers are firmly planted and leveled, thereby eliminating tipping risks. Additionally, the automatic basket rotation minimizes the need to reposition the entire crawler base, drastically speeding up targeted aerial tasks.
Procurement requires trust and verifiable quality. Because this lift reaches standards of ISO, CE and ANSI/CSA, it guarantees world-class manufacturing tolerances and safety protocols. This comprehensive certification profile ensures seamless integration into international fleets and compliance with stringent regional safety regulations.
Selecting the right heavy equipment manufacturer and supplier is a strategic decision that impacts long-term operational success. We are dedicated to delivering not just machinery, but comprehensive aerial access solutions backed by engineering excellence and unwavering support.
To assist procurement managers and technical directors in evaluating this aerial platform, we have compiled detailed answers to the most common inquiries regarding its operation and maintenance.
The 66KV rating provides a significantly higher threshold of electrical resistance compared to the standard 46KV found in many alternatives. This superior rating offers a wider safety margin for operators working in close proximity to high-voltage transmission lines, drastically reducing the risk of arc flashes and electrical conductivity through the boom structure.
The lubrication-free sleeve utilizes advanced composite materials that inherently reduce friction without the need for external grease. This eliminates the daily requirement of manually lubricating boom pivot points, saving hundreds of maintenance hours annually and preventing dust and debris buildup that typically adheres to greased joints.
Yes, the hydraulic adjustable crawlers for height and width are specifically designed to adapt to challenging terrains. The independent hydraulic control allows the operator to widen the stance for enhanced stability or adjust the height to keep the chassis relatively level before deploying the outriggers on slopes up to 11 degrees.
The machine is equipped with a strict hydraulically arms and outrigger interlock system. This fail-safe mechanism physically prevents hydraulic fluid from routing to the boom lift cylinders until sensors confirm that all four outriggers are fully deployed, bearing weight, and the chassis is perfectly leveled.
Absolutely. The radio remote control operates on secure, high-frequency industrial bands paired specifically to the machine's receiver. This ensures that the signal remains strong and uninterrupted, even in environments with heavy electromagnetic interference, such as substations or dense urban construction sites.
The dual power configuration offers maximum versatility. The robust Kubota D902 diesel engine provides the high torque needed for traversing muddy outdoor terrains and steep inclines. Once positioned indoors or in noise-sensitive, zero-emission zones, the operator can switch to the AC power unit, maintaining full hydraulic functionality silently and cleanly.
