18m Insulated Spider Lift | 10KV Insulated | CE/ANSI Certified

Product Overview

As a premier manufacturer and supplier of advanced aerial work platforms, we present the 18m Insulated Spider Lift. Engineered for demanding electrical, municipal, and arboriculture projects, this equipment perfectly balances robust construction with precise maneuverability.

• 18m maximum working height for extensive vertical reach
• 10KV insulation ensuring ultimate operator safety
• CE and ANSI certified for strict compliance
• Compact footprint specifically designed for confined spaces

Product Description

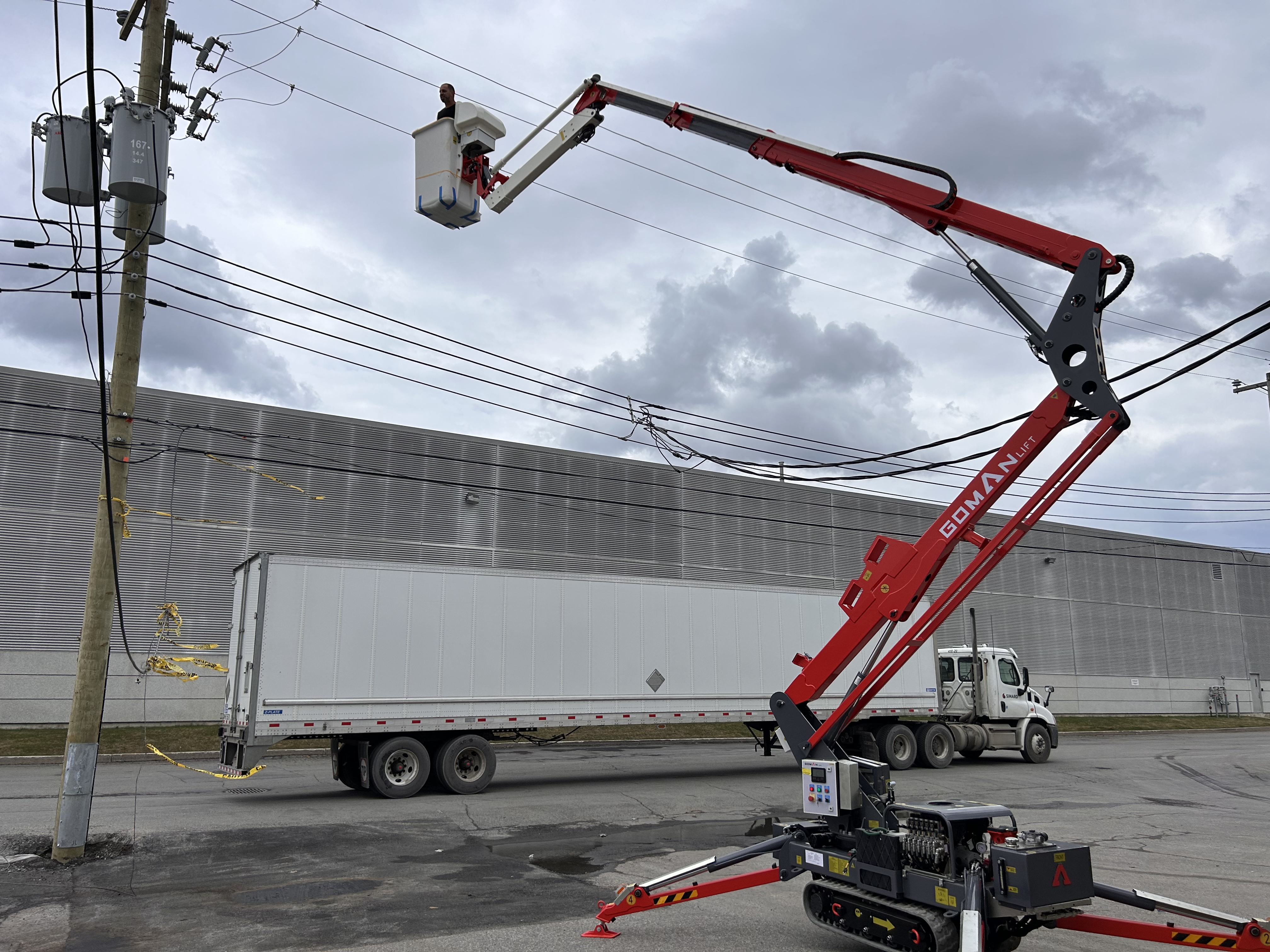

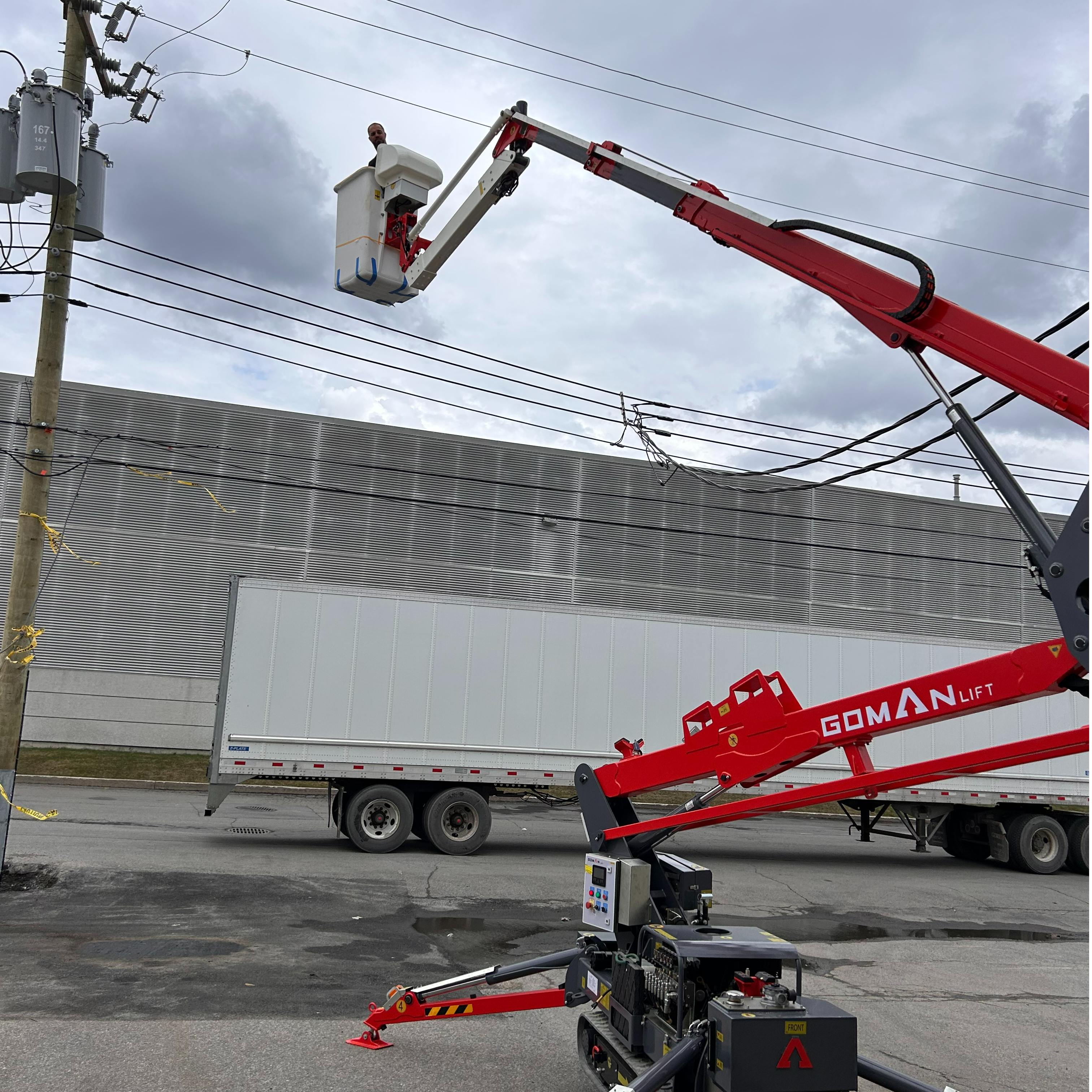

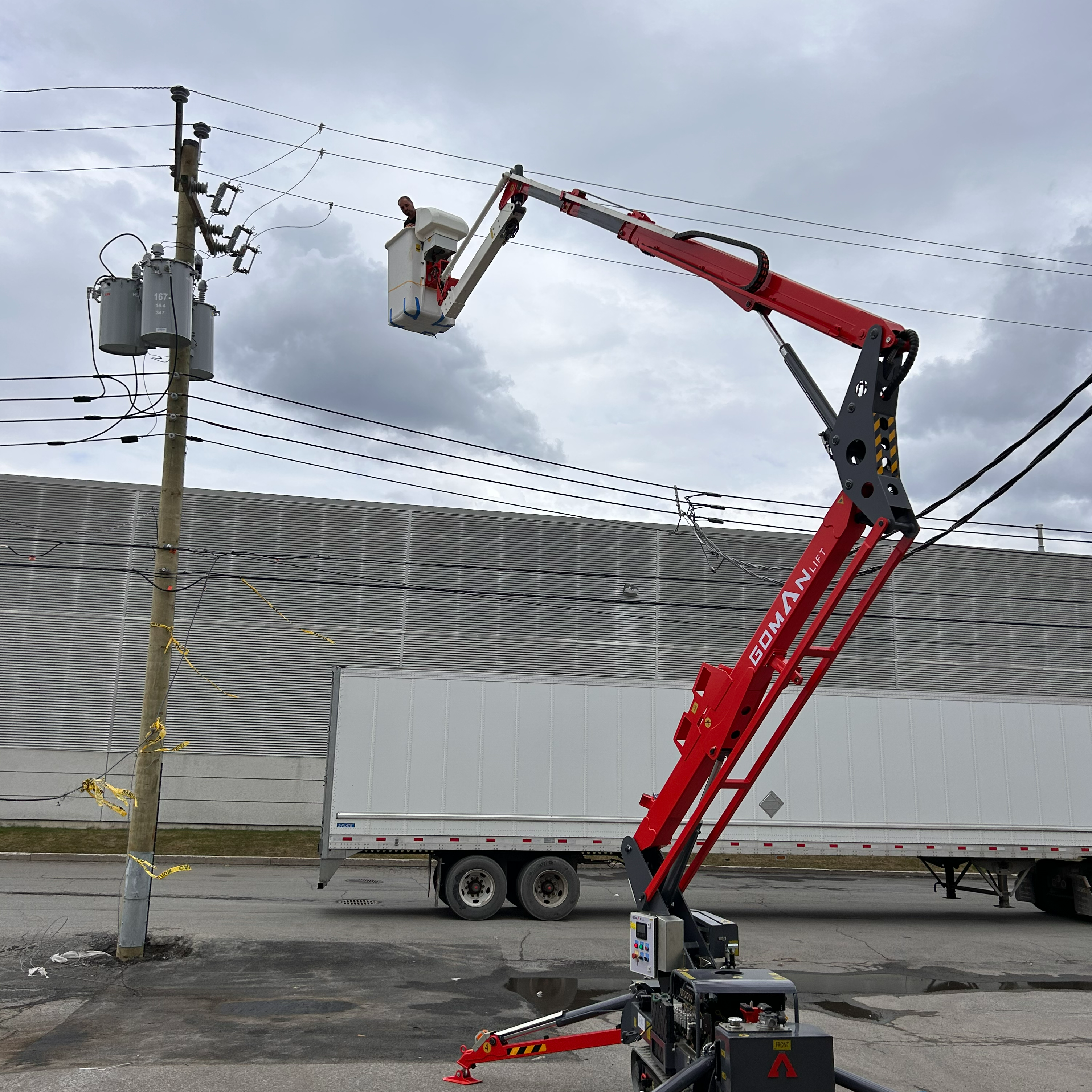

When elevating personnel near live power lines or navigating tight urban corridors, precision and absolute safety are non-negotiable requirements. The 18m Insulated Spider Lift is meticulously engineered to provide an unwavering foundation for midium-high altitude tasks. The moment the hydraulic system engages, operators will notice the smooth, quiet hum of the premium German-engineered controllers translating into fluid, jerk-free boom movements. The tactile feedback from the industrial-grade radio remote control allows for confident maneuvering from up to 100 meters away, ensuring the operator always has the best vantage point while keeping a safe distance from active work zones.

Beyond its impressive 18-meter vertical reach, the physical footprint of this lift is surprisingly unobtrusive, allowing it to access areas traditional machinery simply cannot reach. The heavy-duty, high-tensile steel construction feels remarkably solid, eliminating the unsettling sway often experienced at maximum extension. The deep, industrial-grade coating not only provides a striking visual contrast against outdoor work environments but also serves as a resilient shield against harsh weather and abrasive job site conditions. By integrating a 10KV insulated bucket, this machine actively mitigates the life-threatening risks associated with electrical maintenance, transforming hazardous tasks into controlled, routine operations. It is a definitive solution designed to elevate operational efficiency, safeguard your workforce, and seamlessly integrate into your heavy equipment fleet.

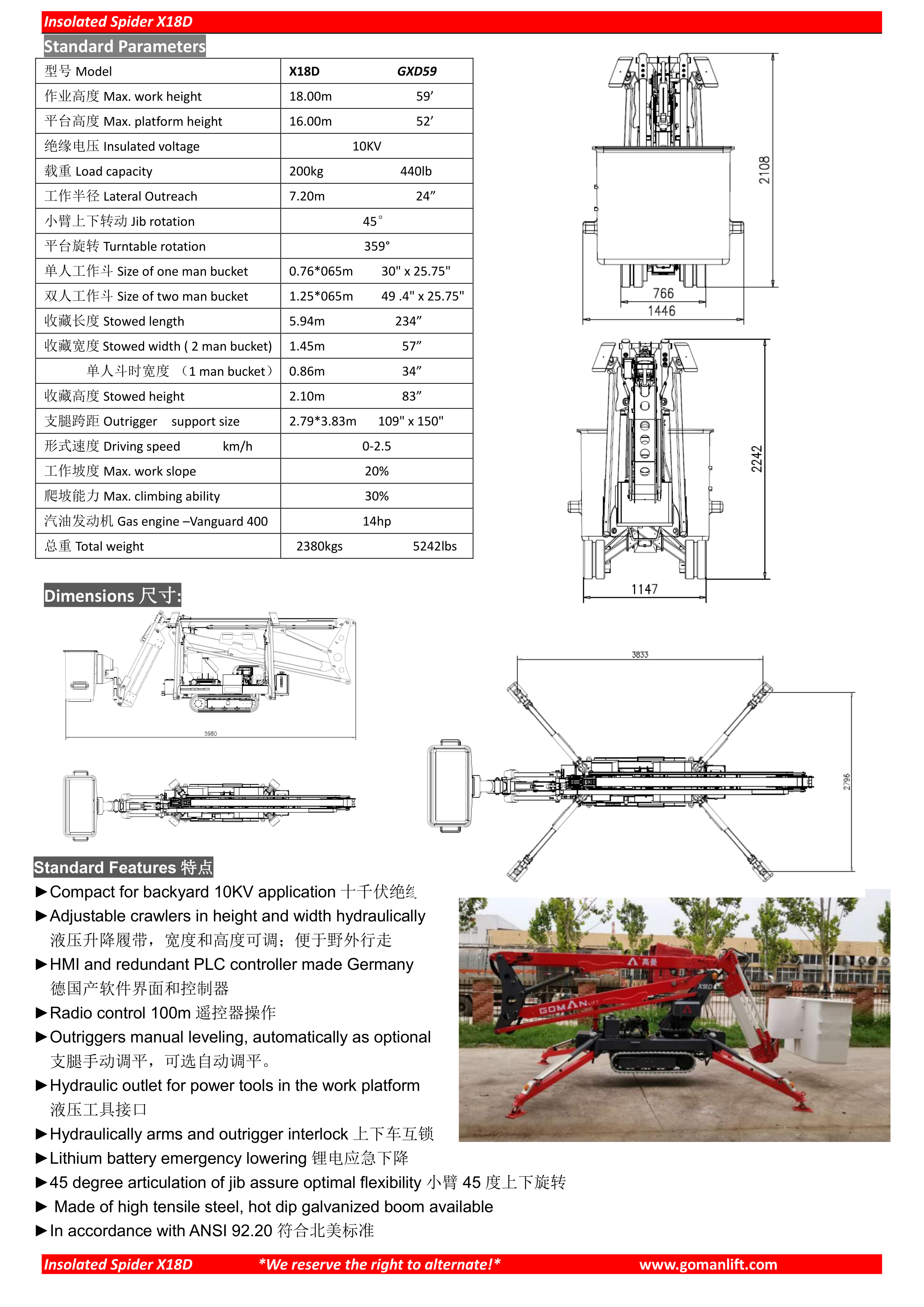

Product Specifications

Below is the comprehensive technical data for the equipment, detailing its operational capacities, dimensions, and core system components.

Key Features & Highlights

Integrating advanced hydraulic engineering with rigorous safety protocols, this insulated tracked lift delivers unparalleled performance in challenging environments. Every component is selected to maximize uptime and protect the operator during intricate tasks.

• Compact for backyard 10KV application, allowing access through standard residential gates and narrow pathways.
• Adjustable crawlers in height and width hydraulically, adapting seamlessly to uneven terrain and tight access points.
• HMI and redundant PLC controller made Germany, guaranteeing lightning-fast processing and fail-safe operation.
• Radio control 100m, providing the operator with a comprehensive view of the work area during delicate maneuvers.
• Outriggers manual leveling, automatically as optional, ensuring a perfectly stable base regardless of ground conditions.
• Hydraulic outlet for power tools in the work platform, eliminating the need for dangerous, dangling extension cords.
• Hydraulically arms and outrigger interlock, preventing any accidental boom deployment before the base is fully secured.
• Lithium battery emergency lowering, offering a reliable backup to bring personnel down safely during unexpected power loss.
• 45 degree articulation of jib assure optimal flexibility, reaching over obstacles with surgical precision.
• Made of high tensile steel, hot dip galvanized boom available, resisting corrosion and extending the machine's lifespan.
• In accordance with ANSI 92.20, meeting the most stringent international safety and performance criteria.

Core Performance & Reach

Achieving the right elevation is only half the battle; reaching the exact work area over obstacles requires superior geometry. This lift is engineered to conquer spatial limitations in municipal, landscaping, and construction projects, ensuring your team can access the most difficult work zones.

• 18-Meter Golden Working Height: Provides the optimal vertical reach for the vast majority of urban utility and tree care applications, reducing the need for oversized, cumbersome equipment that disrupts traffic or landscaping.
• 45-Degree Jib Articulation: The highly responsive jib bends and maneuvers around rooflines, thick branches, and utility poles, granting access to blind spots that traditional straight booms simply cannot reach.

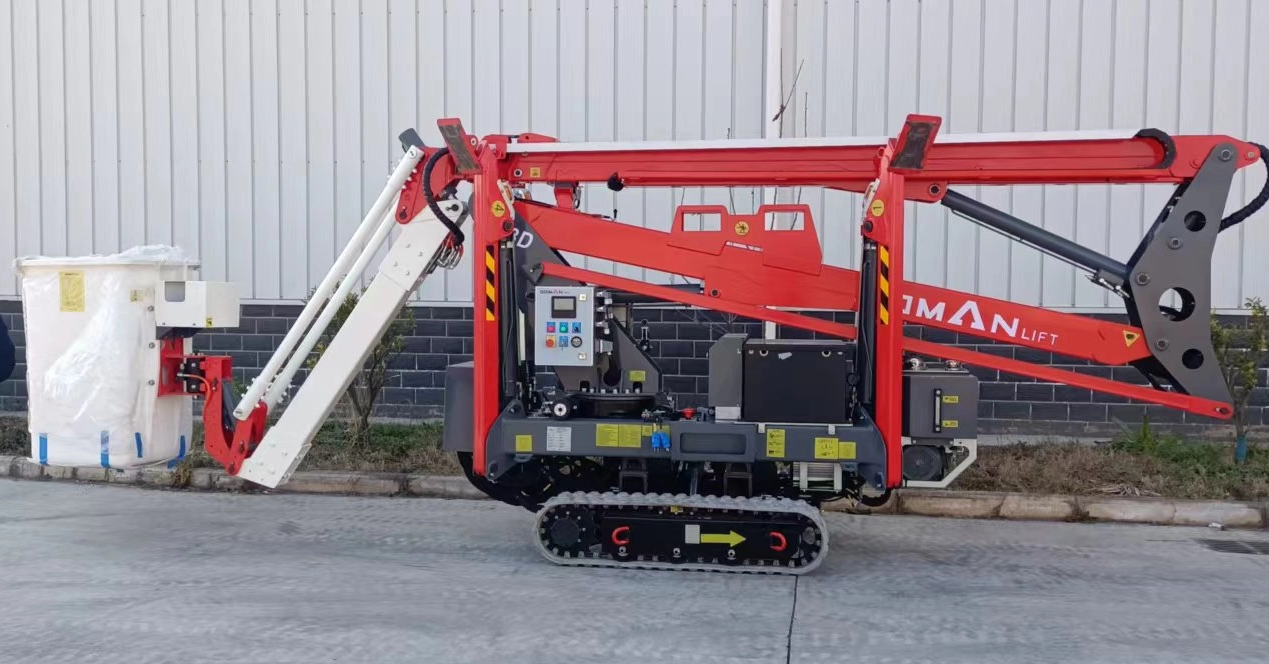

• Confined Space Mastery: The uniquely compact stowed dimensions allow the machine to glide through narrow backyard gates, indoor facility doors, and congested alleyways with minimal disruption to the surrounding environment.
• Smooth Proportional Controls: Every movement, from extending the telescopic boom to rotating the turret, is executed with millimeter precision, eliminating the jarring stops that can unsettle operators at height.

Insulation & Safety Compliance

When working in proximity to live electrical grids, equipment failure is not an option. This spider lift acts as a critical line of defense for your personnel, built around uncompromising safety standards to handle high-risk environments with absolute confidence.

• 10KV Insulation Protection: The fiberglass bucket and isolated boom sections provide a certified 10KV dielectric barrier, shielding operators from accidental electrical arcs during live-line maintenance and tree trimming near power lines.
• ANSI 92.20 & CE Certified: Extensively tested and verified to meet the latest global safety directives, ensuring total compliance for large-scale procurement, municipal contracts, and strict corporate safety policies.
• Structural Integrity: The robust chassis and boom architecture are subjected to rigorous stress testing, guaranteeing stability even when operating at maximum load capacity and outreach in windy conditions.
• Secure Operator Environment: The insulated platform features high-grip flooring and ergonomic guardrails, giving workers the tactile confidence to focus entirely on their intricate tasks rather than their footing.

Smart Control & Maneuverability

Advanced electronics transform this heavy-duty machinery into a highly intuitive tool. The integration of premium control systems ensures that navigating complex job sites is both effortless and highly accurate, reducing operator fatigue and site damage.

• German-Engineered HMI & PLC: The brain of the lift features redundant PLC architecture, meaning every command is cross-checked for safety, resulting in flawless, lag-free operation and immediate response times.
• 100m Wireless Radio Control: Operators can detach the control console and walk up to 100 meters away. This allows them to visually inspect the track path and boom clearance from the ground, significantly reducing the risk of collisions.
• Hydraulically Adjustable Crawlers: With the push of a button, the track width expands for maximum stability on uneven ground, or retracts to squeeze through tight doorways, offering unmatched versatility across diverse job sites.
• Variable Speed Tracking: The crawler system translates hydraulic power into smooth, continuous traction, allowing the machine to crawl delicately over manicured lawns without tearing the turf, or power through muddy construction sites.

Safety & Protection Mechanisms

We understand that operational safety directly impacts your bottom line and workforce well-being. This equipment is fortified with layers of mechanical and electronic fail-safes to prevent accidents before they happen, ensuring peace of mind on every deployment.

• Hydraulic Arm and Outrigger Interlock: A foolproof mechanical and sensor-based system ensures the boom cannot be elevated unless all four outriggers are firmly planted and bearing weight. Conversely, outriggers cannot be retracted while the boom is raised.
• Lithium Battery Emergency Lowering: In the rare event of a primary engine failure or fuel depletion, the independent lithium battery system instantly takes over, allowing the operator to smoothly and safely descend to the ground without relying on manual bleed valves.
• Overload Sensing Technology: Embedded load cells continuously monitor the weight in the basket. If the 200kg-230kg capacity is exceeded, the system automatically halts lifting functions, preventing structural strain and potential tipping.
• Tilt Alarm and Cut-off: High-precision inclinometers detect unsafe ground angles. If the chassis exceeds safe operating limits, an audible alarm sounds and elevating functions are locked out until the machine is properly leveled.

Material & Durability

Heavy utilization demands exceptional build quality. Every weld, joint, and surface of this lift is crafted to withstand the brutal realities of daily industrial use, ensuring your investment retains its value year after year with minimal degradation.

• High Tensile Steel Construction: The core boom sections are fabricated from specialized high-yield steel, offering an incredible strength-to-weight ratio that minimizes deflection and maximizes reach without adding unnecessary bulk.
• Hot Dip Galvanized Option: For fleets operating in highly corrosive environments like coastal areas or chemical plants, the optional hot-dip galvanized boom provides an impenetrable barrier against rust and degradation.
• Weather-Sealed Components: Sensitive electrical connections and hydraulic valves are housed in IP-rated enclosures, protecting them from dust ingress, heavy rain, and high-pressure washing during routine cleaning.
• Abrasion-Resistant Hoses: All exposed hydraulic lines are wrapped in heavy-duty protective sleeving, preventing punctures and leaks caused by falling debris, sharp branches, or accidental scraping against abrasive surfaces.

Platform Adaptability & Efficiency

A work platform should be more than just a place to stand; it should be a fully equipped aerial workstation. This lift is designed to streamline the workflow of the personnel operating it, drastically cutting down project completion times and boosting daily output.

• Integrated Hydraulic Outlet: The platform features a built-in hydraulic power port, allowing workers to plug in chainsaws, crimpers, or impact wrenches directly at the basket. This eliminates the severe tripping hazard of routing long hoses up the boom.
• Optional Automatic Leveling: Time is money on a job site. The optional auto-leveling system deploys and balances all four outriggers simultaneously with a single button press, cutting setup time by more than half compared to manual adjustments.
• Spacious Basket Design: Despite its compact nature, the insulated bucket provides ample shoulder room and tool storage space, reducing operator fatigue during extended shifts in the air and improving overall focus.
• Multi-Function Joystick: The intuitive control layout allows operators to perform multiple boom functions simultaneously, such as lifting and rotating, creating a fluid, time-saving trajectory to the target work zone.

ROI & Maintenance Cost

Procuring capital equipment requires a strict analysis of the Total Cost of Ownership (TCO). This spider lift is engineered to minimize downtime and simplify maintenance, delivering a rapid and sustained return on investment for large-scale operations.

• Premium International Components: By utilizing globally recognized brands for the core hydraulic and electronic systems, we ensure exceptional reliability and drastically reduce the frequency of unexpected breakdowns that halt projects.
• Standardized Replacement Parts: The modular design utilizes standardized hoses, fittings, and sensors. This means routine maintenance items are easily sourced and replaced, keeping inventory costs low and repair times incredibly short.
• Accessible Service Points: The engine compartment and hydraulic manifolds are strategically positioned behind wide-opening, tool-less panels. Technicians can perform daily checks and fluid changes comfortably, encouraging proactive fleet maintenance.
• Extended Lifespan: The combination of high-tensile materials, redundant safety systems, and superior weatherproofing ensures that this machine will remain a productive, revenue-generating asset in your fleet for over a decade.

Why Choose Us

Selecting the right equipment supplier is just as critical as selecting the equipment itself. As a dedicated manufacturer of premium aerial work platforms, we provide comprehensive support designed to empower your operational capabilities and streamline your procurement process from start to finish.

• End-to-End Manufacturing Excellence: We control every stage of the production process, from raw steel inspection to final hydraulic load testing, ensuring absolute consistency and quality across every unit we deliver to your facilities.
• Global Certification Compliance: Our engineering team works tirelessly to ensure our products not only meet but exceed rigorous international standards like CE and ANSI, guaranteeing smooth integration into highly regulated work environments.
• Dedicated Technical Support: We offer comprehensive after-sales service, including detailed maintenance training, rapid parts dispatch, and direct access to our senior engineering staff for complex troubleshooting and guidance.
• Customization Capabilities: Understanding that different projects have unique demands, we offer tailored configurations—from specialized boom coatings to custom power options—ensuring the equipment perfectly aligns with your specific operational requirements.
• Streamlined Global Logistics: With years of experience in international distribution, our logistics team ensures secure, efficient, and timely delivery of your heavy equipment, regardless of your geographic location, minimizing your waiting time.

FAQ

Here are some of the most common technical inquiries we receive from procurement managers, safety officers, and fleet directors regarding the capabilities and maintenance of this equipment.

• How does the 10KV insulation actively protect operators during live-line maintenance?

  The lift utilizes a specially manufactured fiberglass bucket and strategically placed dielectric composite inserts within the boom structure. This creates a definitive break in electrical conductivity, preventing dangerous currents up to 10,000 volts from traveling from the work area down to the grounded chassis, ensuring maximum operator safety during critical utility work.

• Can the hydraulic crawler system navigate delicate indoor flooring without causing damage?

  Yes. The hydraulically adjustable crawlers are equipped with premium non-marking rubber tracks. Combined with the machine's smooth, proportional drive system, it distributes the weight evenly, allowing it to traverse sensitive surfaces like polished concrete, marble, or indoor tiles without leaving scuffs or causing structural stress.

• What is the primary advantage of the redundant PLC controller made in Germany?

  Redundancy in the PLC (Programmable Logic Controller) means there are dual processing systems continuously monitoring the machine's functions. If one sensor or logic path detects an anomaly or fails, the secondary system instantly takes over to safely halt operations. This German-engineered reliability virtually eliminates the risk of software-induced accidents.

• How does the lithium battery emergency lowering system operate during a total power failure?

  Unlike traditional manual bleed valves that can be slow and jarring, the independent lithium battery powers a dedicated auxiliary hydraulic pump. If the main engine fails or runs out of fuel, the operator can activate this system directly from the basket to smoothly and proportionally lower the boom and rotate the turret, ensuring a safe and controlled descent.

• Is the hot-dip galvanized boom necessary for standard operations?

  While the standard high-tensile steel boom features a highly durable, industrial-grade paint finish suitable for most environments, the hot-dip galvanized option is highly recommended for extreme conditions. If your operations frequently involve high humidity, coastal salt spray, or corrosive chemical environments, the galvanized coating provides superior, long-lasting rust prevention, significantly lowering long-term maintenance costs.
